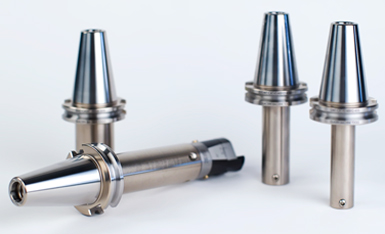

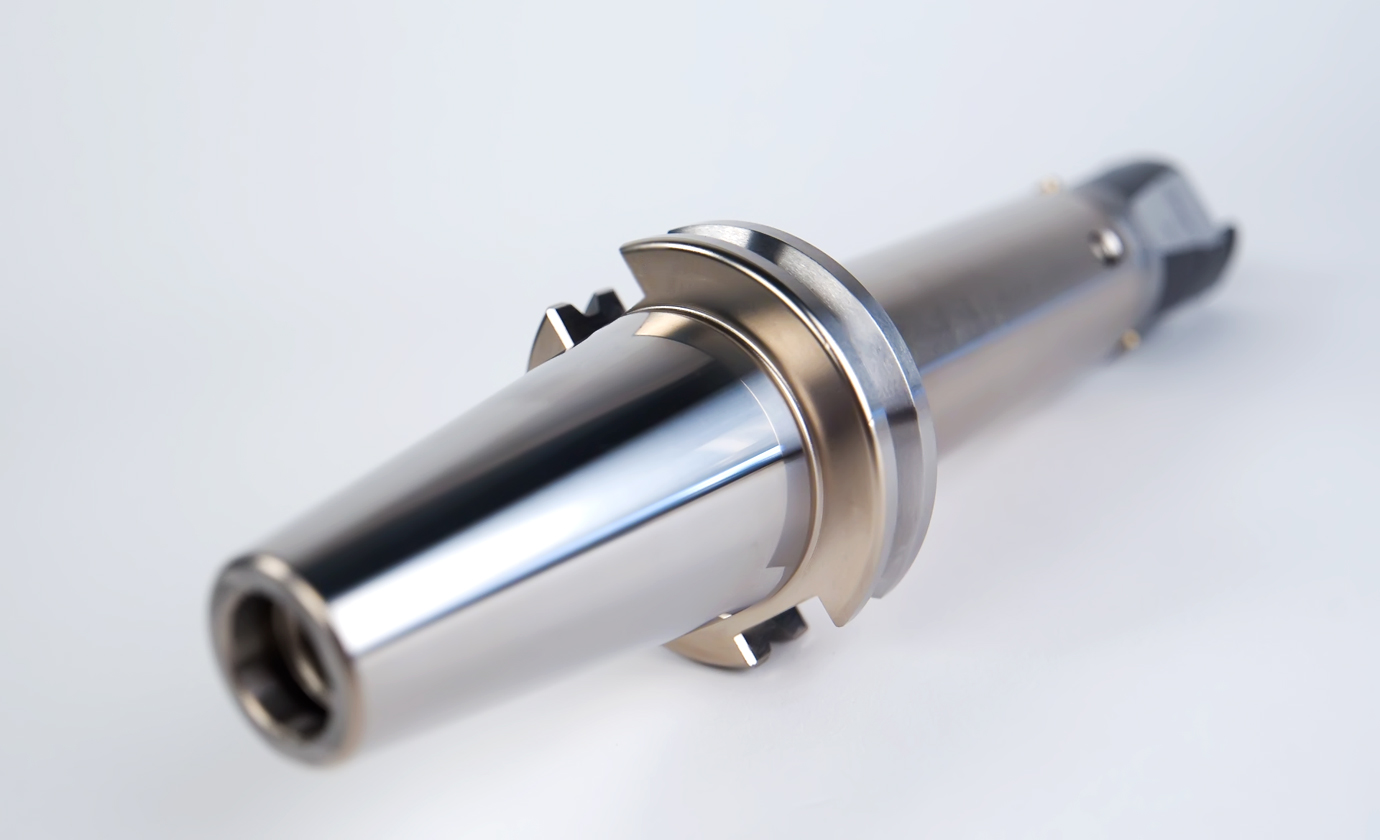

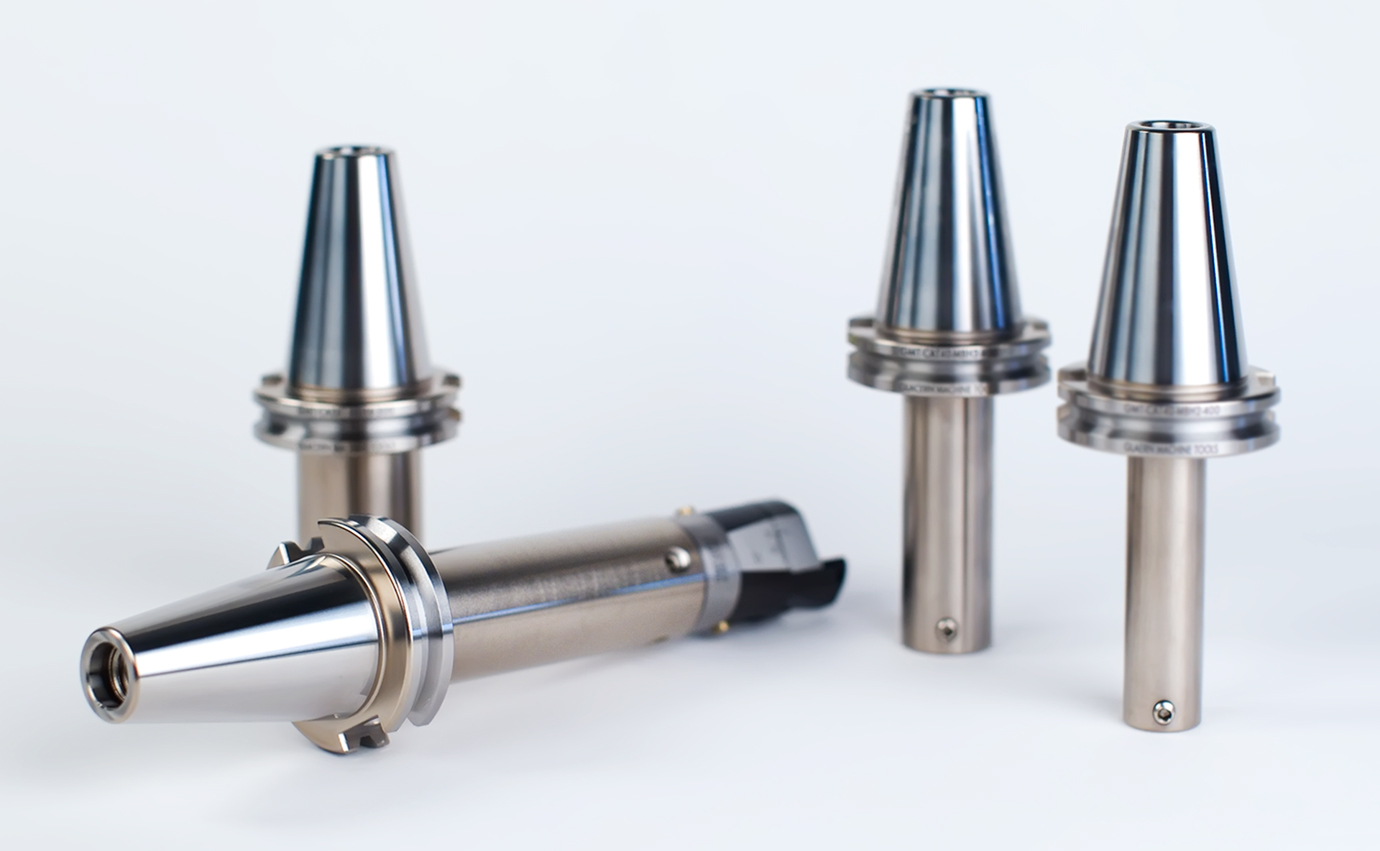

Glacern Twin Cutter Modular Boring Heads

Product Overview

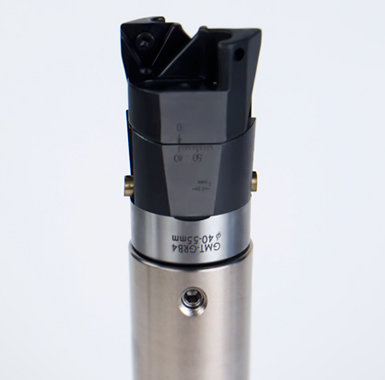

The Glacern twin cutter modular boring head series is the newest addition to our precision lineup. Designed for heavy duty rough boring and semifinishing operations, this twin cutter boring head features a unique adjustable design making different cutting diameters possible without the need to change components or use presetters. A diameter scale on the cutter allows the machinist to adjust the tool quickly. Tool body and insert holders are compeltely protected against corrosion.

Features
  • Ideal solution for rough boring on machines with limited tool weight
  • Secure configuration suited for higher speed operations
  • For use on production machines such as boring mills and machining centers
  • Designed for heavy duty boring and semifinishing operations
  • Unique flexible design, user adjustable in seconds
  • Each model has an adjustment range, quickly change the cutting diameter
  • Electroless Nickel Plated Finish
  • Precision ground surfaces
  • Concentricity < 0.00015"

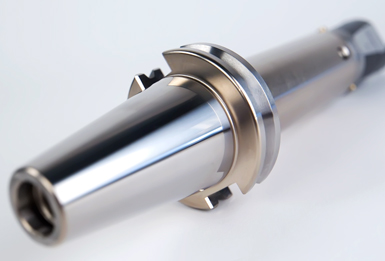

  • Tapers and flange hardened to 55 HRC
  • Rear thread for pull stud 5/8-11 UNC
  • All CAT40 chucks balanced to G2.5 @ 20,000RPM


TWIN-BORING-SET-1 includes the following items:
  • CAT40-MBH1-238: modular boring head holder, 2.38" long
  • GRB1: indexable twin head cutter, adjustable to 19-25mm


TWIN-BORING-SET-2 includes the following items:
  • CAT40-MBH2-238: modular boring head holder, 2.38" long
  • GRB2: indexable twin head cutter, adjustable to 25-33mm


TWIN-BORING-SET-3 includes the following items:
  • CAT40-MBH3-238: modular boring head holder, 2.38" long
  • GRB3: indexable twin head cutter, adjustable to 32-43mm


TWIN-BORING-SET-4 includes the following items:
  • CAT40-MBH4-300: modular boring head holder, 3.00" long
  • GRB4: indexable twin head cutter, adjustable to 40-58mm


TWIN-BORING-SET-5 includes the following items:
  • CAT40-MBH5-300: modular boring head holder, 3.00" long
  • GRB5: indexable twin head cutter, adjustable to 52-77mm


Additional carbide inserts for steel & aluminum can be found at www.glacern.com/inserts


CAT40 Boring Head Sets - Electroless Nickel
TWIN-BORING-SET-1 Modular Boring Head Holder and Cutter Set, 19-25mm PHOTO $254.15 IN STOCK

TWIN-BORING-SET-2 Modular Boring Head Holder and Cutter Set, 25-33mm PHOTO $254.15 IN STOCK

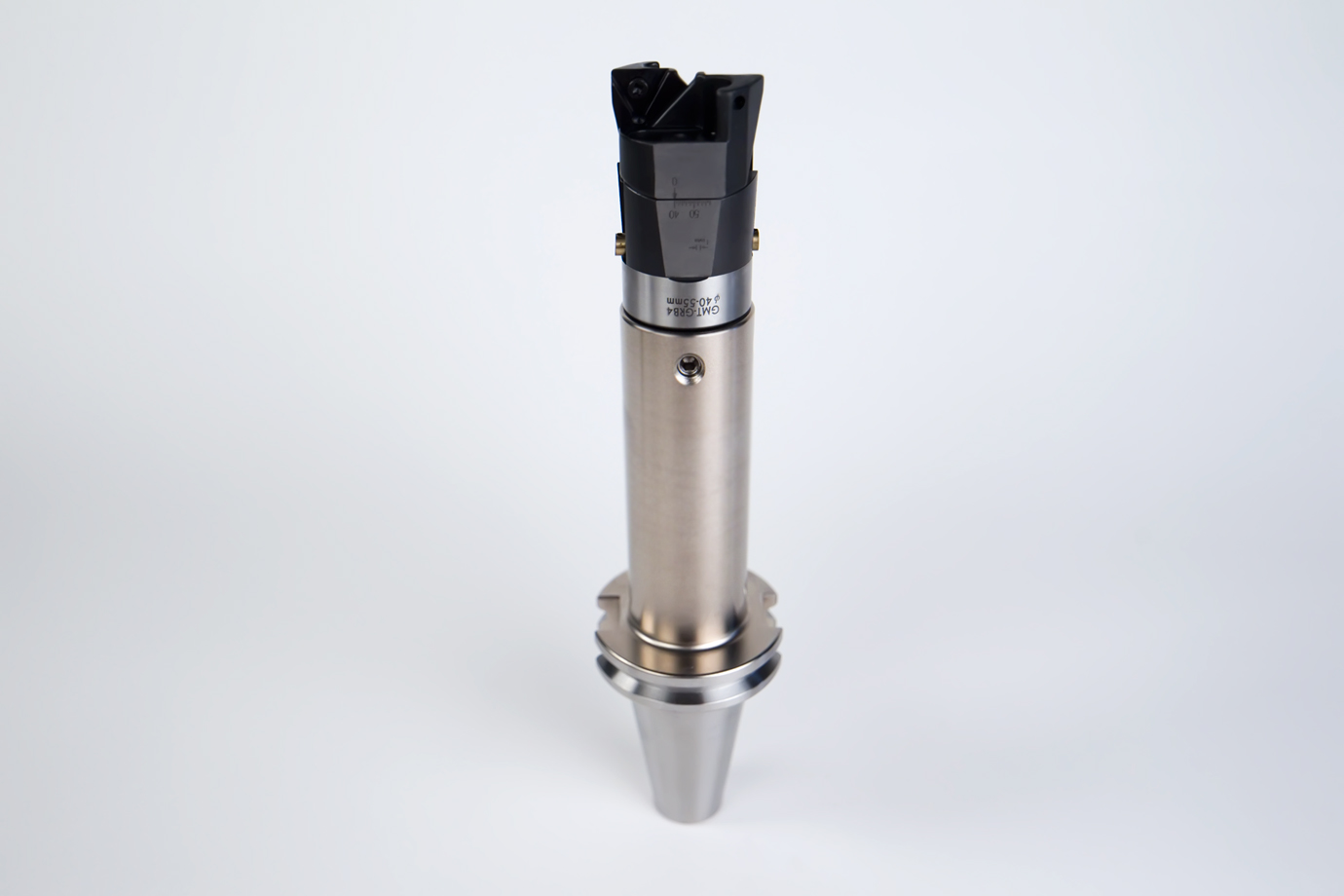

TWIN-BORING-SET-3 Modular Boring Head Holder and Cutter Set, 32-43mm PHOTO $254.15 IN STOCK

TWIN-BORING-SET-4 Modular Boring Head Holder and Cutter Set, 40-58mm PHOTO $254.15 IN STOCK

TWIN-BORING-SET-5 Modular Boring Head Holder and Cutter Set, 52-77mm PHOTO $254.15 IN STOCK


Carbide Inserts for SET-1 and SET-2

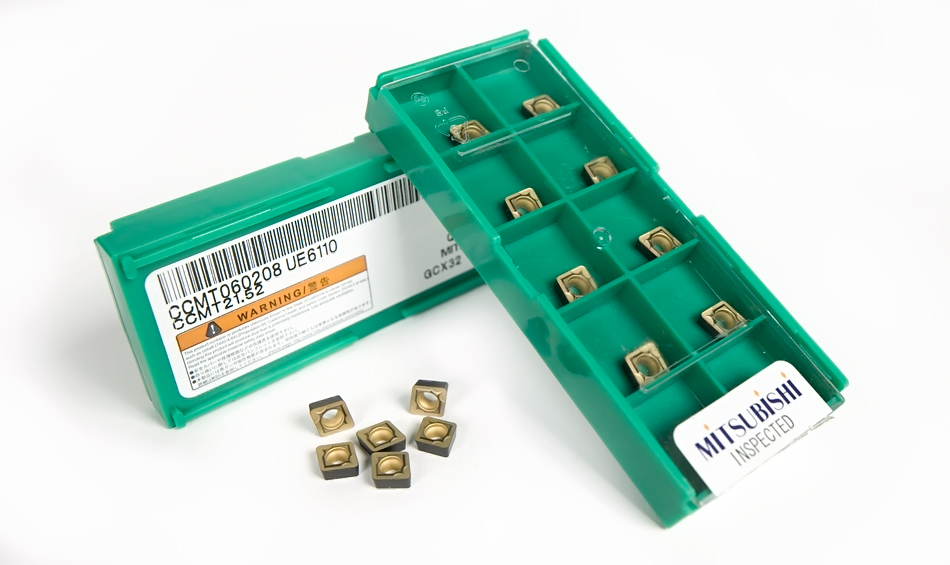

CCMT060-UE6110 Mitsubishi Inserts - Steel (10 pk) PHOTO $159.99 IN STOCK

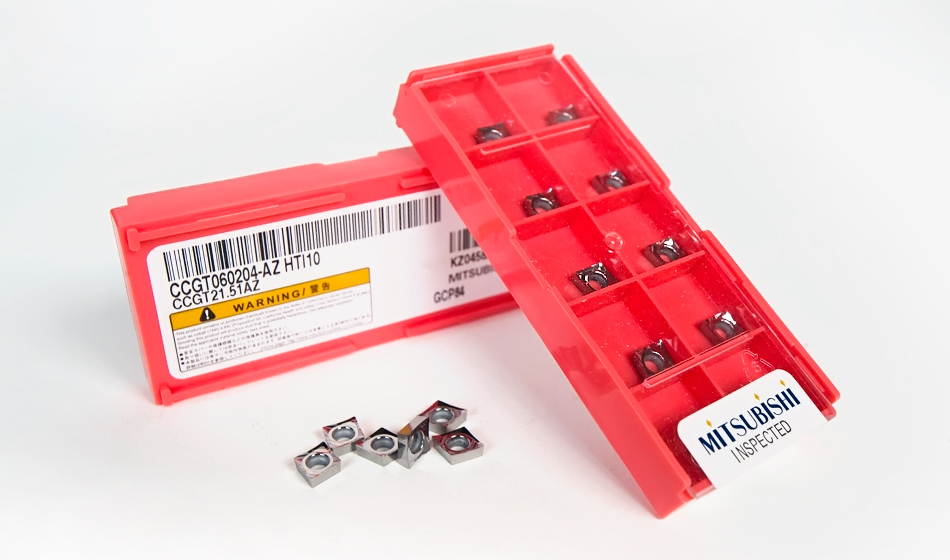

CCGT060-HTi10 Mitsubishi Inserts - Aluminum (10 pk) PHOTO $199.99 IN STOCK


Carbide Inserts for SET-3

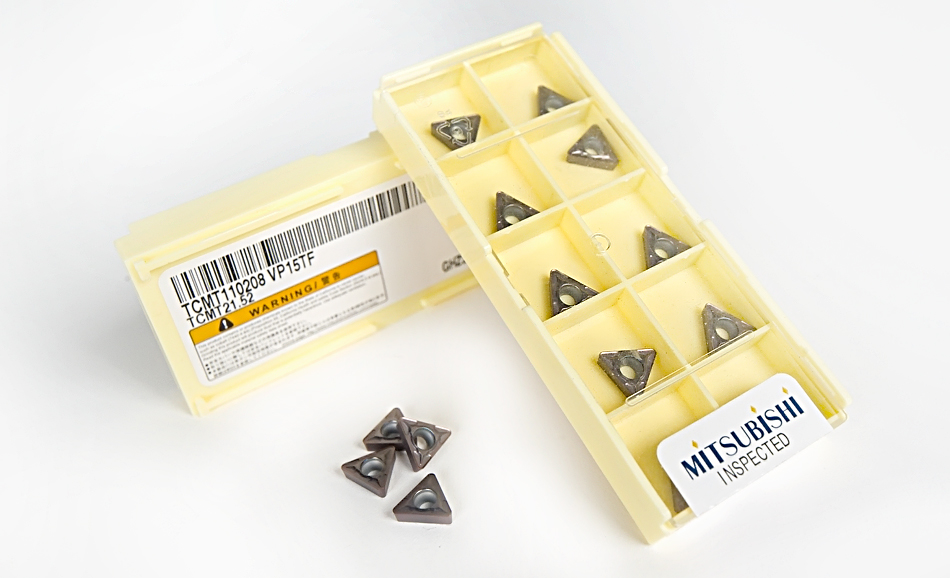

TCMT110-VP15TF Mitsubishi Inserts - Steel (10 pk) PHOTO $159.99 IN STOCK

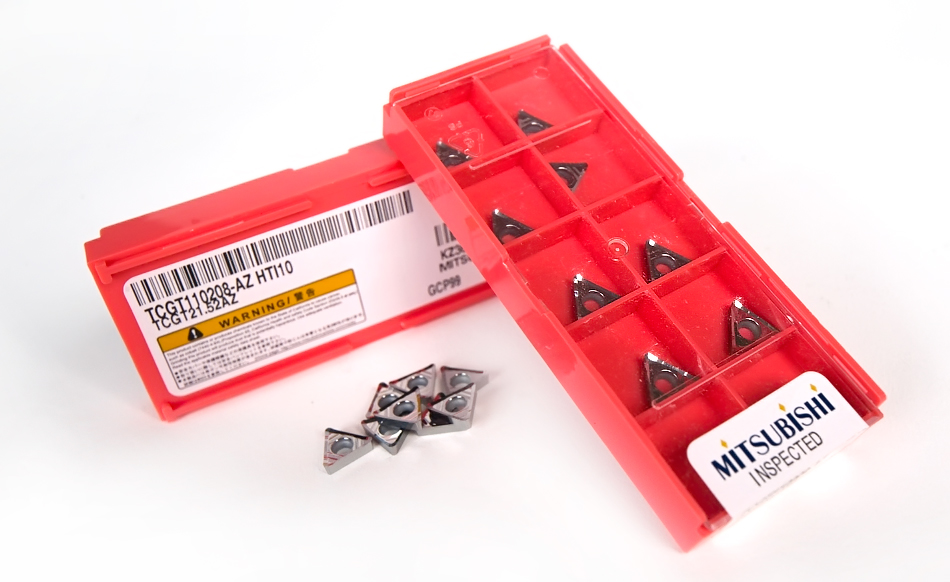

TCGT110-HTi10 Mitsubishi Inserts - Aluminum (10 pk) PHOTO $199.99 IN STOCK


Carbide Inserts for SET-4 and SET-5

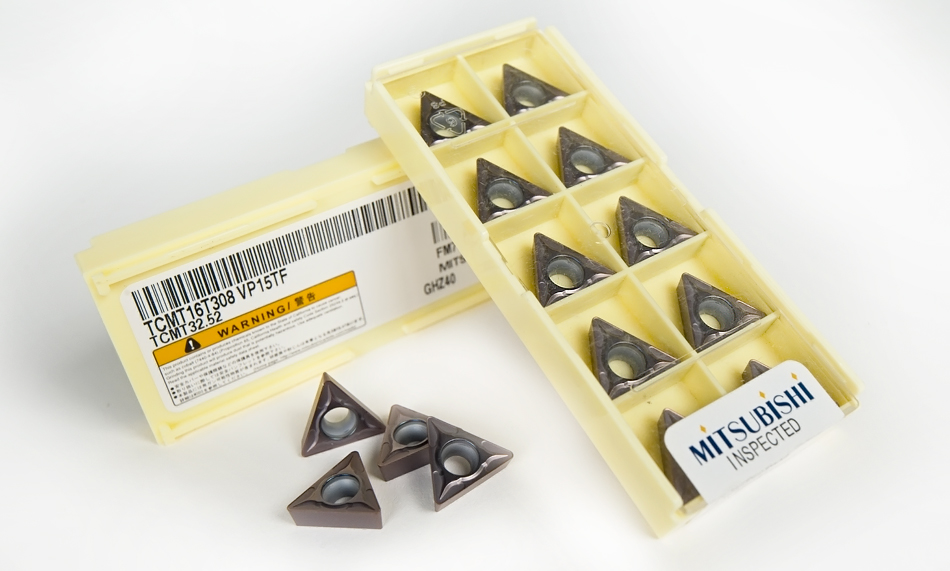

TCMT16T-VP15TF Mitsubishi Inserts - Steel (10 pk) PHOTO $159.99 IN STOCK

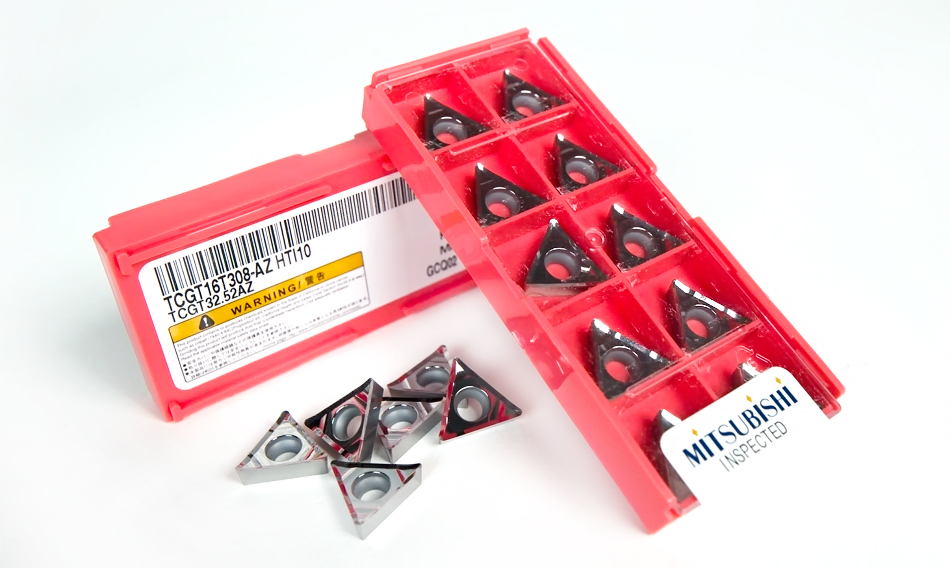

TCGT16T-HTi10 Mitsubishi Inserts - Aluminum (10 pk) PHOTO $199.99 IN STOCK
