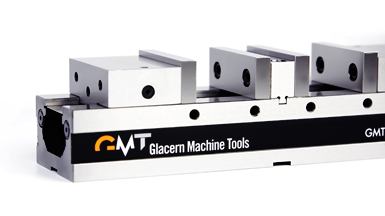

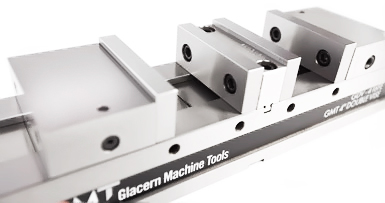

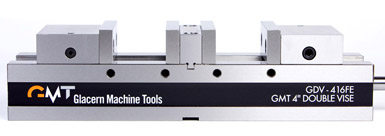

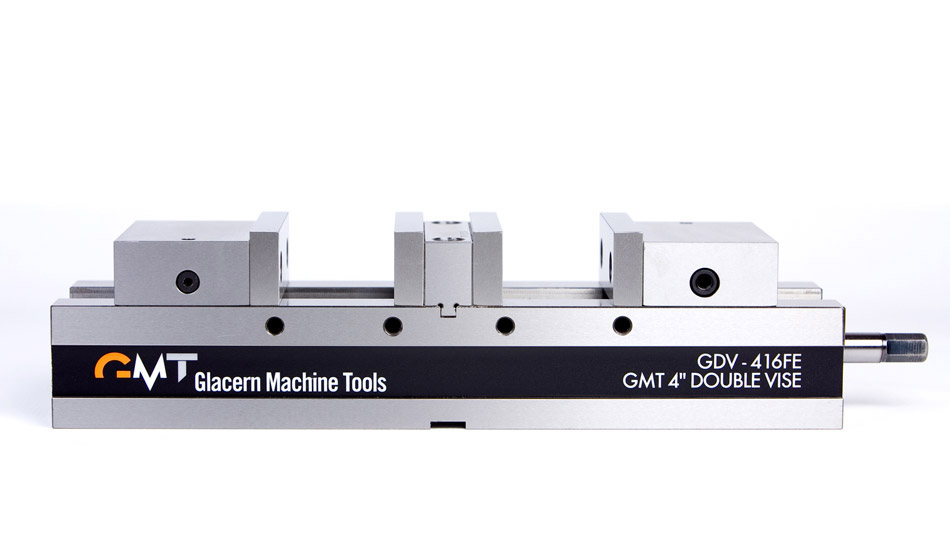

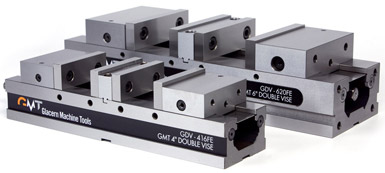

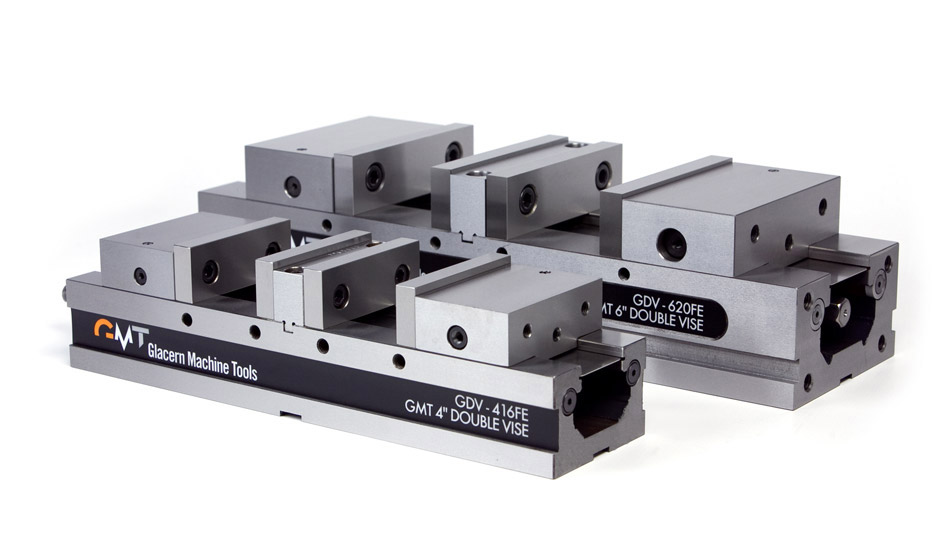

GDV-416FE 4" Double Vise
» Video: Product Spotlight on GDV Double Vises
| Product Overview | |||||
|

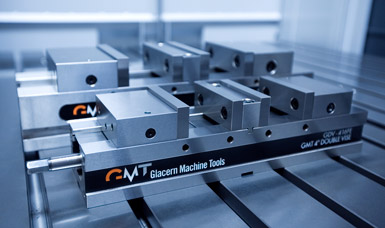

The compact GDV-416FE double station cnc vise maximizes your VMC or HMC table real estate. Flat ground sides allow high density mounting. The 55 pound weight makes this vise a much more manageable alternative to larger vises for shops who make frequent setup changes and don't have access to an overhead crane. Perfect for high volume work on small parts, each station can clamp up to 3.5". When needed for larger jobs, the center jaw can be removed and by using the jaw-fixing plate the vise can convert into a 9.25" capacity single station vise. Running a Haas or a Tormach? All of our vises now come with 5/8" T-slot keys. If you'd like 11/16" instead, shoot us an email after you place your order online to let us know and we'll gladly swap sizes for free! Construction
Specifications
Included Accessories
Optional Accessories
|
|
||||
|
|||||
|
|||||
|
|||||
|
|||||
| GDV-416FE | 4 Inch Double CNC Vise |  PHOTO |
$1199.00 | OUT OF STOCK | Email Us |
| Specialty Vise Jaws | |||||
| GCJ-400 | 4-Inch Chomper Hard Jaws |  PHOTO |
$169.99 | IN STOCK | |
| OPJ-400 | 4-Inch OP Jaws Quick Change Set |  PHOTO |
$149.00 | IN STOCK | |
| GVJ-400 | 4-Inch Hardened Vee Jaw |  PHOTO |
$99.00 | IN STOCK | |
| GXJ-400 | 4-Inch Serrated Hard Jaws |  PHOTO |
$139.99 | IN STOCK | |
| GHJ-400-P | 4-inch Original Hard Jaws (Pair) |  PHOTO |
$119.99 | IN STOCK | |
| GSJ-4AL | Soft Jaws - 4 Inch Aluminum |  PHOTO |
$59.00 | IN STOCK | |
| GSJ-460AL | Extra Wide 6 AL Soft Jaws for 4 In Vises |  PHOTO |
$59.00 | OUT OF STOCK | Email Us |
| GDV-CSJ400 | 4-Inch Carvable Jaws for GDV Vise |  PHOTO |
$199.99 | OUT OF STOCK | Email Us |
| Optional Vise Accessories | |||||
| GAK-625ST | 5/8 Table to 11/16 Vise T-Slot Keys |  PHOTO |
$49.99 | IN STOCK | |
| GAK-6875 | 11/16 Inch T-Slot Keys |  PHOTO |
$49.99 | IN STOCK | |
| GAK-14mmST | 14mm Table to 11/16 Vise T-Slot Keys |  PHOTO |
$49.99 | IN STOCK | |
| GAK-18mmST | 18mm Table to 11/16 Vise T-Slot Keys |  PHOTO |
$49.99 | IN STOCK | |
| GAK-22mmST | 22mm Table to 11/16 Vise T-Slot Keys |  PHOTO |
$49.99 | IN STOCK | |
| GV4-HANDLE | Extra Handle for 4-inch Vise |  PHOTO |
$59.99 | IN STOCK | |
| GV4-HANDLE-CRANK | Crank Handle for 4-inch Vise |  PHOTO |
$29.00 | IN STOCK | |
| GV4-HANDLE-SPEED | Speed Handle 4 Inch Vise |  PHOTO |
$99.00 | IN STOCK | |
| GV6-STOP | Work Stop for 4 and 6 Inch Vise |  PHOTO |
$149.99 | IN STOCK | |
| Technical Specifications & Dimensions | Accuracy | |||
| Material: | 80,000 PSI Ductile Iron | Bed Height: | 2.500" +/- 0.0005" | |
| Bed Hardness: | HRC 50 | Bed to Base: | Parallel to 0.0005" | |
| Jaw Plate Threads: | 3/8"-16 UNC, 2.500" Spacing | Fixed Jaw to Bed: | Perpendicular to 0.0005" | |
| Clamping Force: | 10,000 lbs | Fixed Jaw to Keyway: | Parallel to 0.0005" | |
| Shipping Weight: | 55 lbs | Clamping Repeatability: | +/- 0.0002" | |
|
||||
| [ Click to View Detailed Dimensions ] | [ Right Click to Save ] | |||
