GDV-620DX 6" Deluxe Double Vise - V2

» Video: Product Spotlight on GDV Double Vises

Product Overview

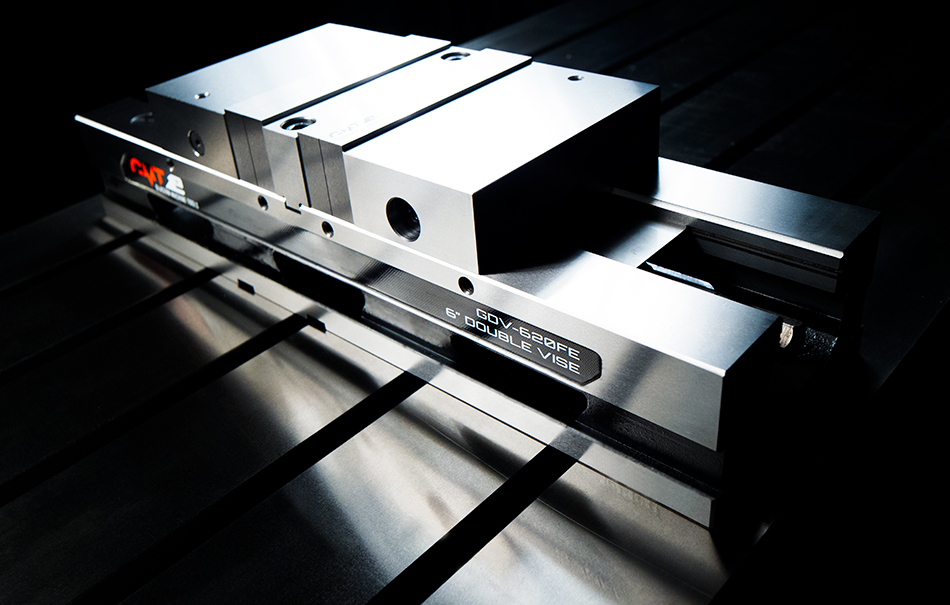

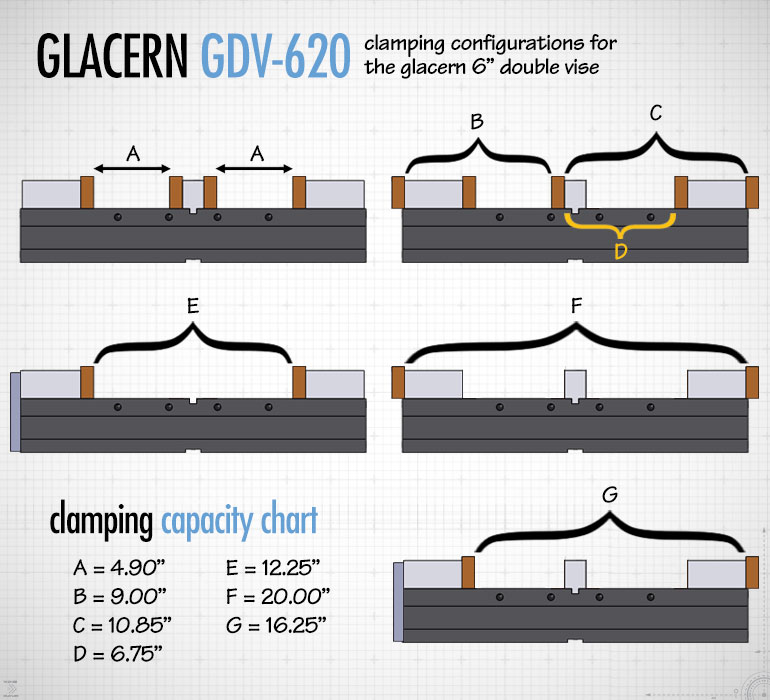

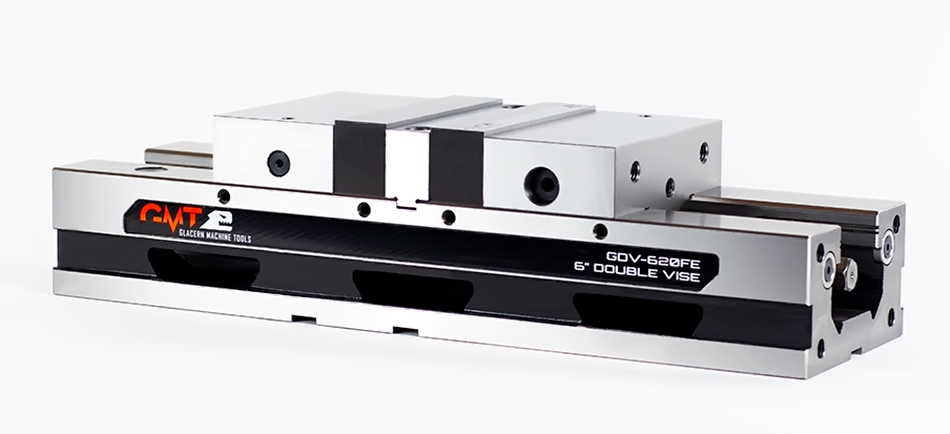

The GDV-620DX (Version 2) 6” Deluxe Double Vise is the flagship of Glacern's workholding line. At 6" wide x 20.5" long and weighing in at a hefty 110 lbs, this cnc vise securely holds multiple workpieces for maximum productivity. Perfect for mass production environments and rapid prototyping shops, this 6-Inch Glacern Double Vise can clamp two similar or dissimilar sized workpieces up to 4.9" in its dual stations. The GDV-620DX (Version 2) double vise also quickly converts into a wide opening single station or reversed single station cnc vise with a massive 12.2" capacity between jaws, and features fully ground sides for optional sideways bed mounting in your CNC machine.

We’ve taken what’s made this vise popular and made it even better by improving on the past and incorporating new features. Maximize your VMC or HMC table real estate even more by attaching the vise to your table/tombstone with our new machined thru-hole bolt down method. The GDV-620DX (Version 2) has four thru-holes, which allow you to drop a long 1/2-13 bolt down through the bed itself to attach it to the table, completely aleviating the need for any side clamping. Hole spacing is at 10-inches and 4-inches so it's compatible with a standard 2x2 grid plate.

Running a Haas or a Tormach? All of our vises now come with 5/8" T-slot keys. If you'd like 11/16" instead, shoot us an email after you place your order online to let us know and we'll gladly swap sizes for free!

New Features
  • New Upgraded Body Design
  • Machined Thru-Holes (x4) for bolting to table
  • Designed to optionally mount on 2x2 grid plate
  • Two T-slot Key Positioning Options
  • Perfect Haas VF-2 Fit - 1 keyway + 2 thru-holes to mount
  • Side Holes for Chip Evacuation and Vise Handling
  • End Holes on Both Ends for faster single station / reversed vise conversions

Construction
  • 80,000 PSI stress-relieved ductile cast iron
  • Bed and jaw plates hardened to HRC 55
  • Anti jaw-lift with eccentric pin mechanism
  • Unique leadscrew design clamps different sized workpieces
  • Converts into single station cnc vise w/ included hardware
  • Over 10,000 lbs max clamping force
  • Clamping repeatability of +/- 0.0002"

Specifications
  • 3.25" bed height, +/- 0.0005"
  • Bed heights matched with multiple cnc vise orders
  • 4.9" capacity each station in standard configuration
  • 12.2" max capacity in single station (2.75" min capacity)
  • 19.5" maximum flat plate capacity
  • 20.5" bed length
  • Adjustable friction stop enables sequential jaw movement
  • Industry-standard bolt hole pattern (3.875" x 0.9375")
  • 110 lbs shipping weight
  • Lifetime limited warranty
  • Click to view additional specs and dimensions below

Included Accessories
  • Polished Handle (3/4" hex)
  • 6" Hard Jaw Plates
  • 5/8" T-slot alignment keys (11/16" keys also available)
  • (4) Toe Clamps
  • (4) T-slot mounting bolts & nuts
  • Bult-in Chip guards
  • Single Station Conversion Jaw-Fixing Plate


Optional Accessories
  • Specialty Vise Jaws
  • Speciality Speed Handles
  • Work Stop (compatible with 4" and 6" vises)
  • Fully Carvable Soft Jaw sets for customized setups
  • Different Size Vise Alignment Keys


GDV-620DX 6 Inch Deluxe Double Vise - V2 PHOTO $1299.00 IN STOCK


Specialty Vise Jaws

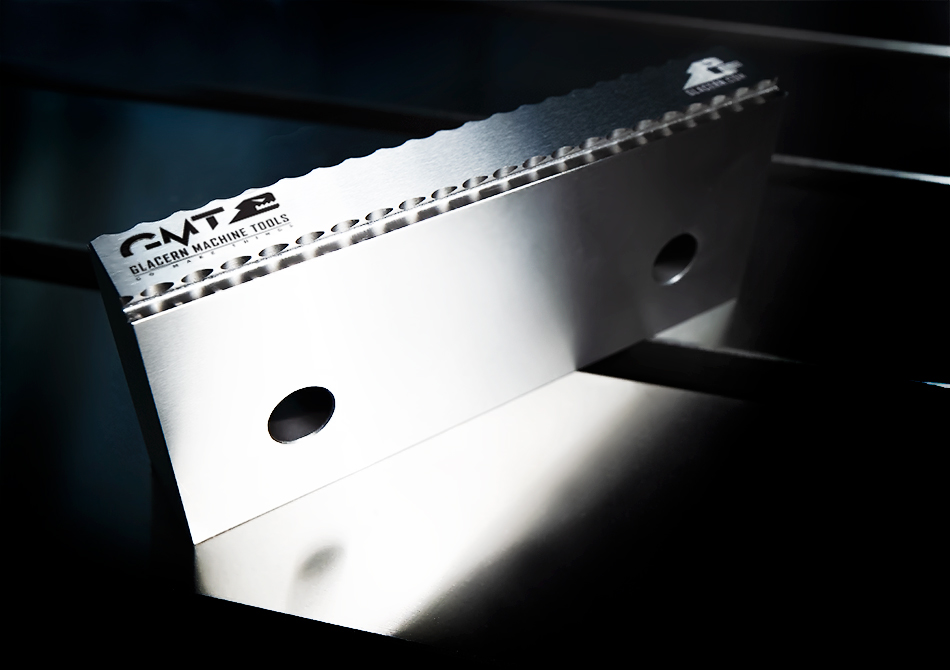

GCJ-600 6-Inch Chomper Hard Jaws PHOTO $149.00 IN STOCK

OPJ-600 6-Inch OP Jaws Quick Change Set PHOTO $159.00 IN STOCK

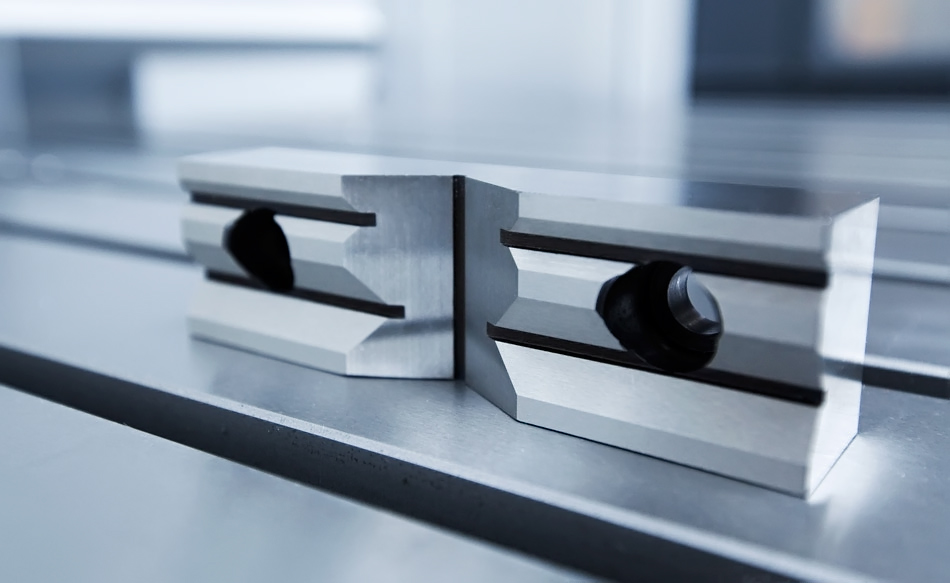

GVJ-600 6-Inch Hardened Vee Jaw PHOTO $119.00 IN STOCK

GXJ-600 6-Inch Serrated Hard Jaws PHOTO $199.99 IN STOCK

GHJ-600-P 6-inch Original Hard Jaws (Pair) PHOTO $119.99 IN STOCK

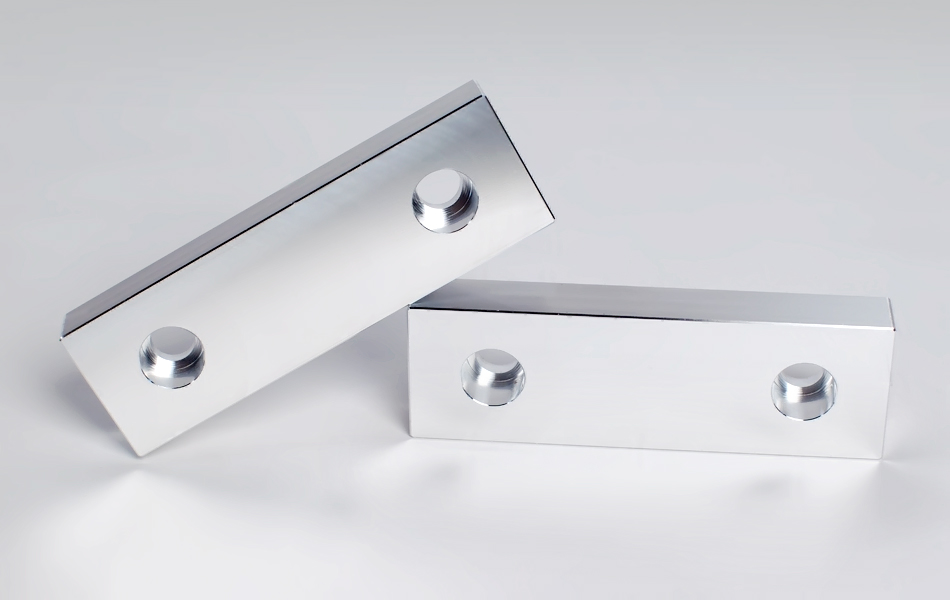

GSJ-061020AL Soft Jaws - Al (6x1x2) Small PHOTO $49.00 IN STOCK

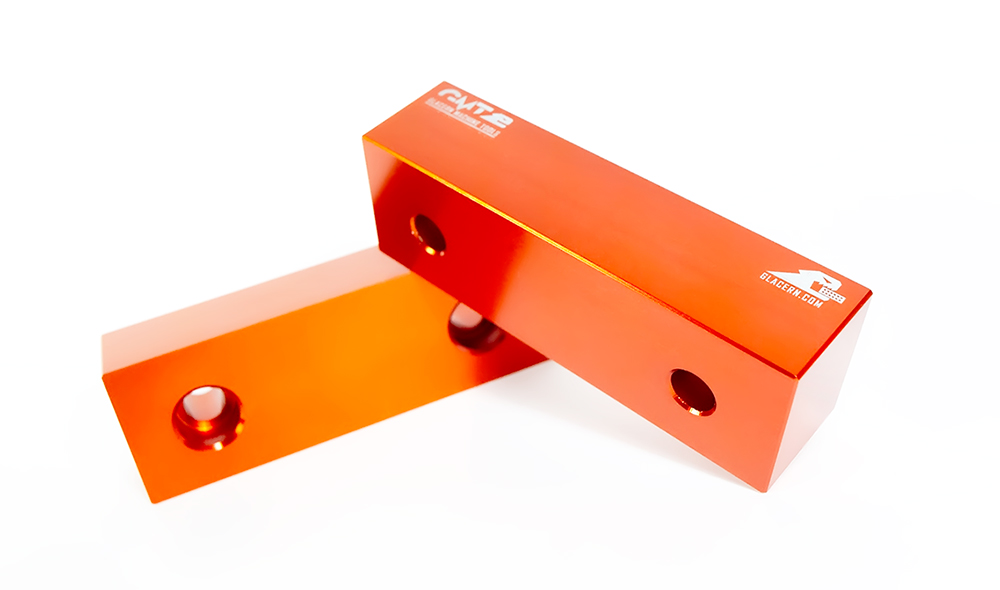

GSJ-061520AL Soft Jaws - Al (6x1.5x2) Medium PHOTO $59.00 IN STOCK

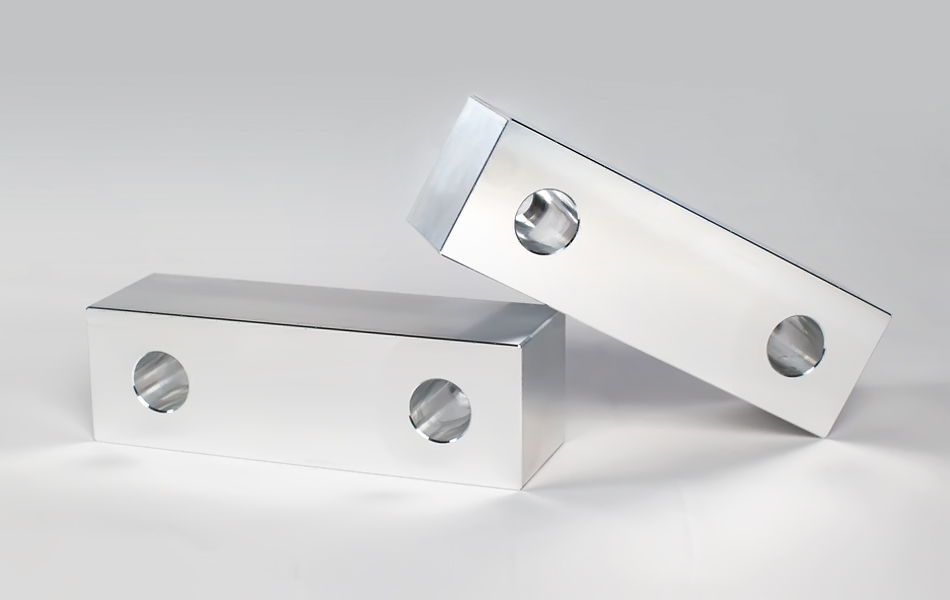

GSJ-062020AL Soft Jaws - Al (6x2x2) Large PHOTO $69.00 IN STOCK

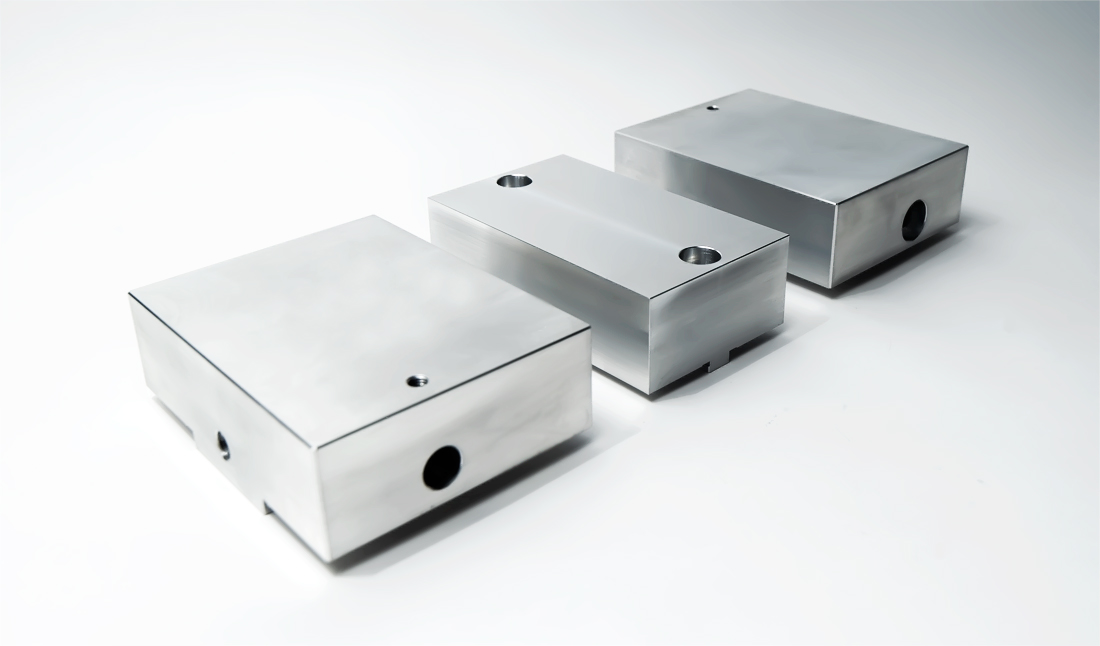

GDV-CSJ600 6-Inch Carvable Jaws for GDV Vise PHOTO $199.99 IN STOCK

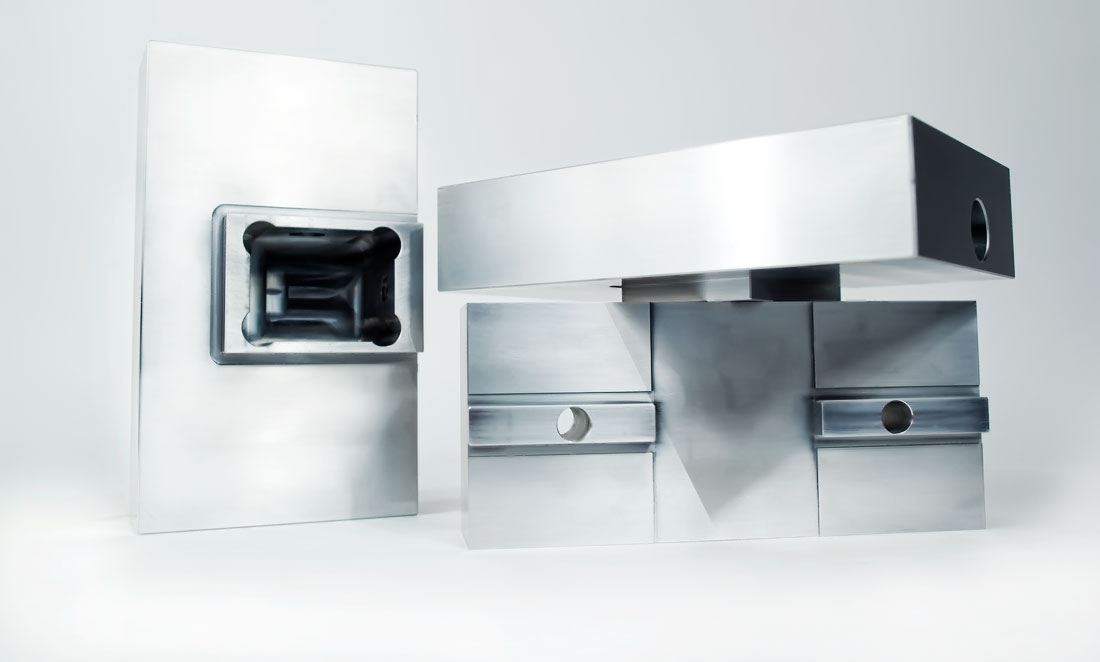

GDV-CSJ680 8-Inch Carvable Jaws for GDV Vise PHOTO $199.99 IN STOCK


Optional Vise Accessories

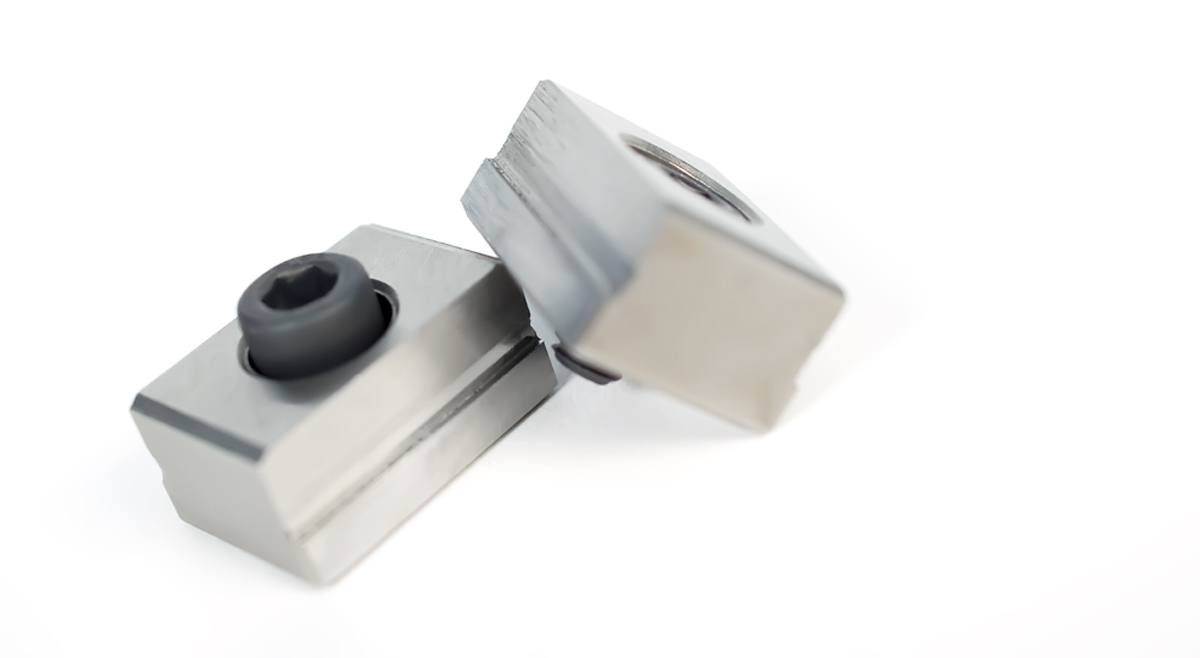

GAK-625ST 5/8 Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

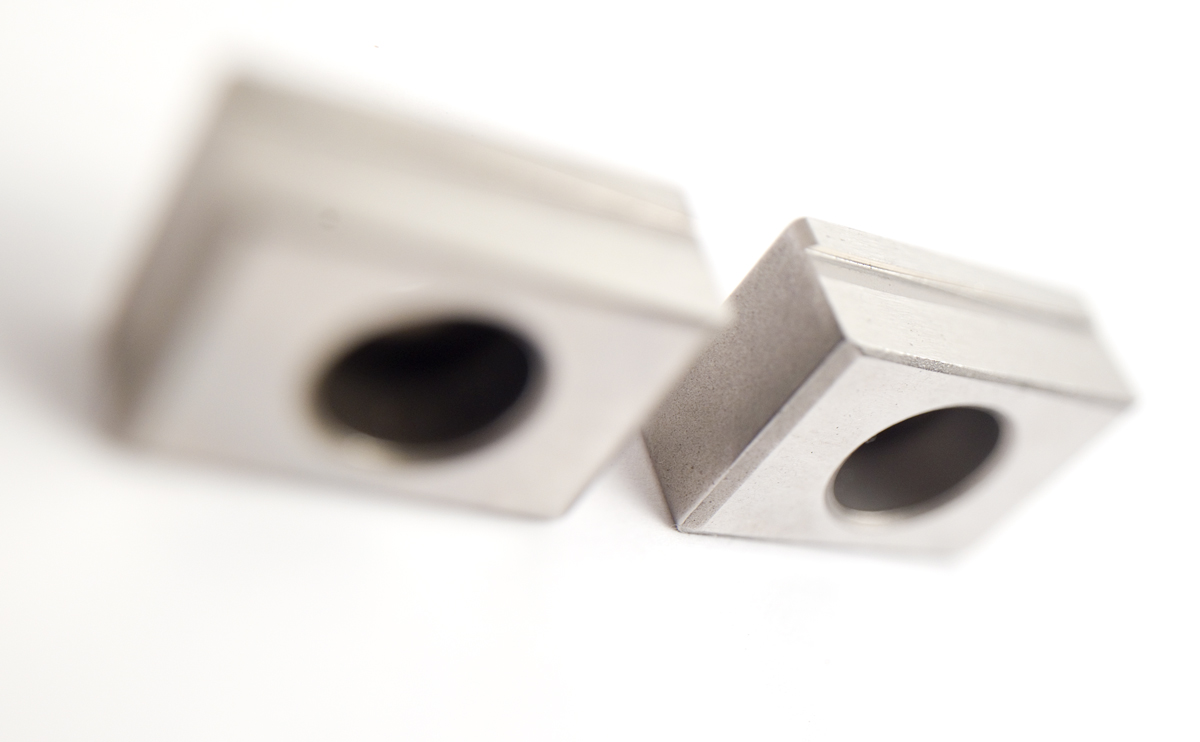

GAK-6875 11/16 Inch T-Slot Keys PHOTO $49.99 IN STOCK

GAK-14mmST 14mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-18mmST 18mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-22mmST 22mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

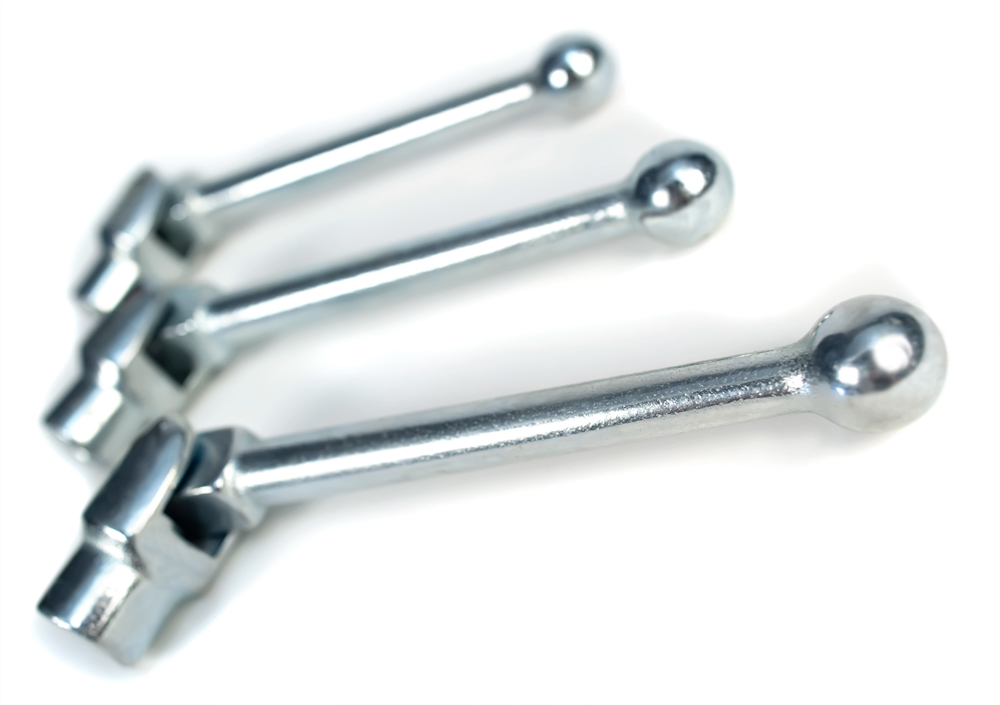

GV6-HANDLE Extra Handle for 6-inch Vise PHOTO $59.99 IN STOCK

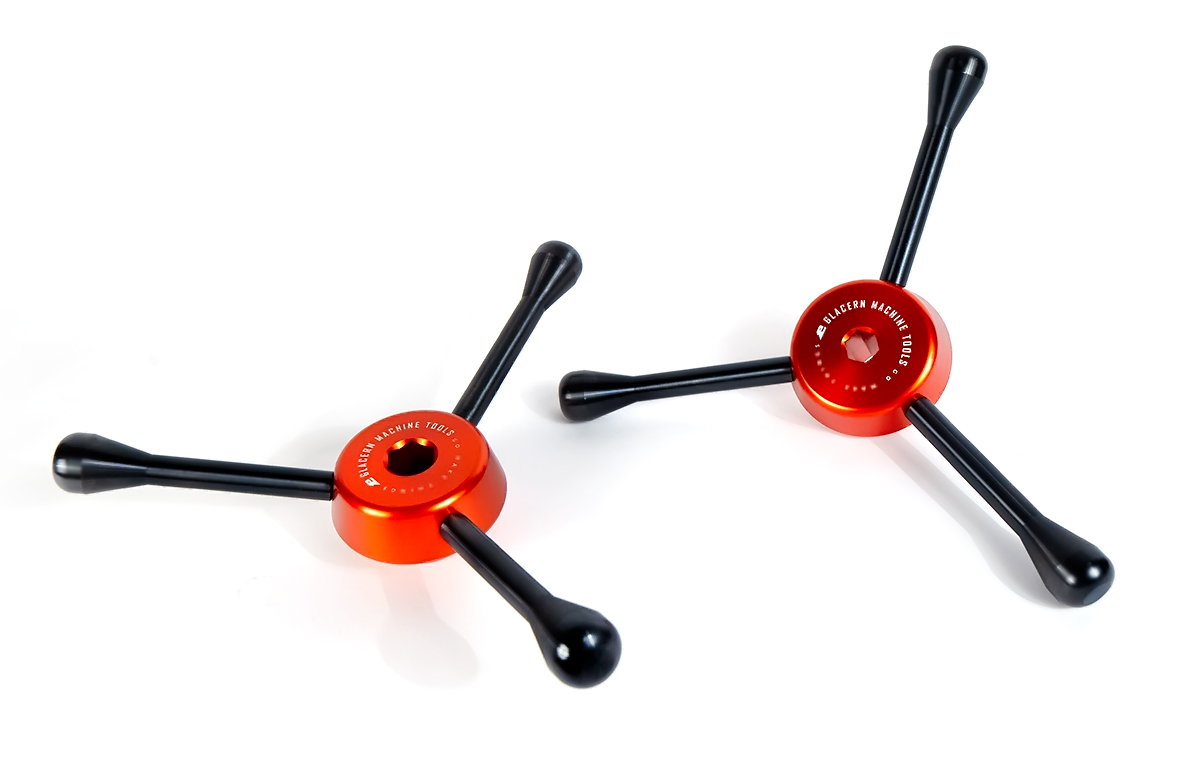

GV6-HANDLE-SPEED Speed Handle - 6 Inch Vise PHOTO $70.00 IN STOCK

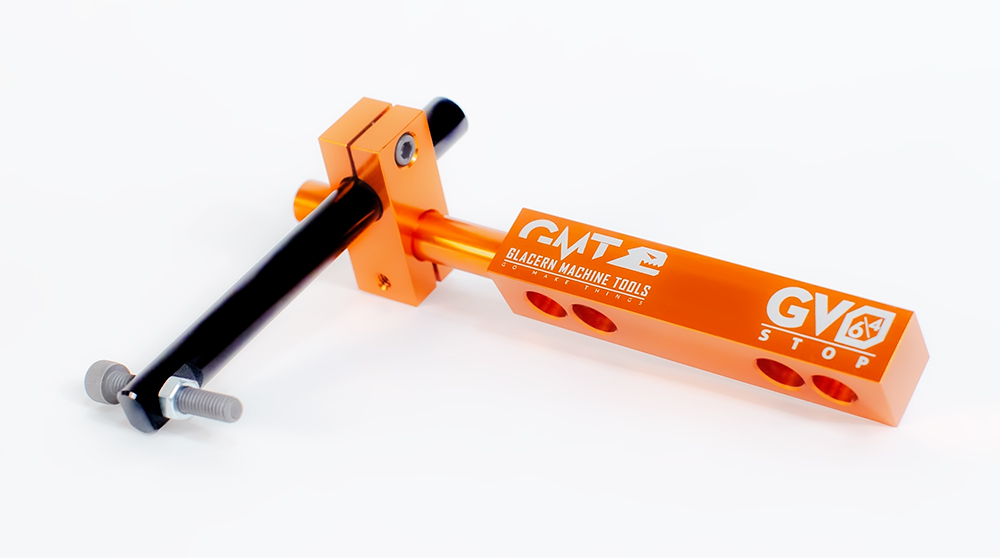

GV6-STOP Work Stop for 4 and 6 Inch Vise PHOTO $99.99 IN STOCK


Additional Photos


Technical Specifications & Dimensions Accuracy
Material: 80,000 PSI Ductile Iron Bed Height: 3.250" +/- 0.0005"
Bed Hardness: HRC 50 Bed to Base: Parallel to 0.0005"
Jaw Plate Threads: 1/2"-13 UNC, 3.875" Spacing Fixed Jaw to Bed: Perpendicular to 0.0005"
Clamping Force: 10,000 lbs Fixed Jaw to Keyway: Parallel to 0.0005"
Shipping Weight: 120 lbs Clamping Repeatability: +/- 0.0002"

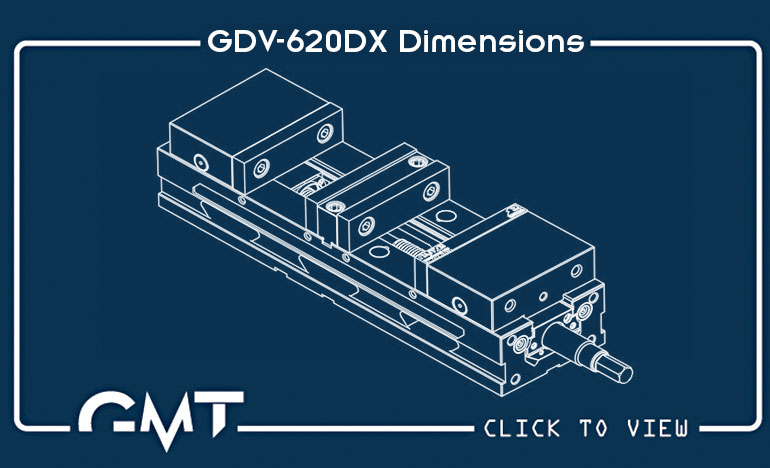

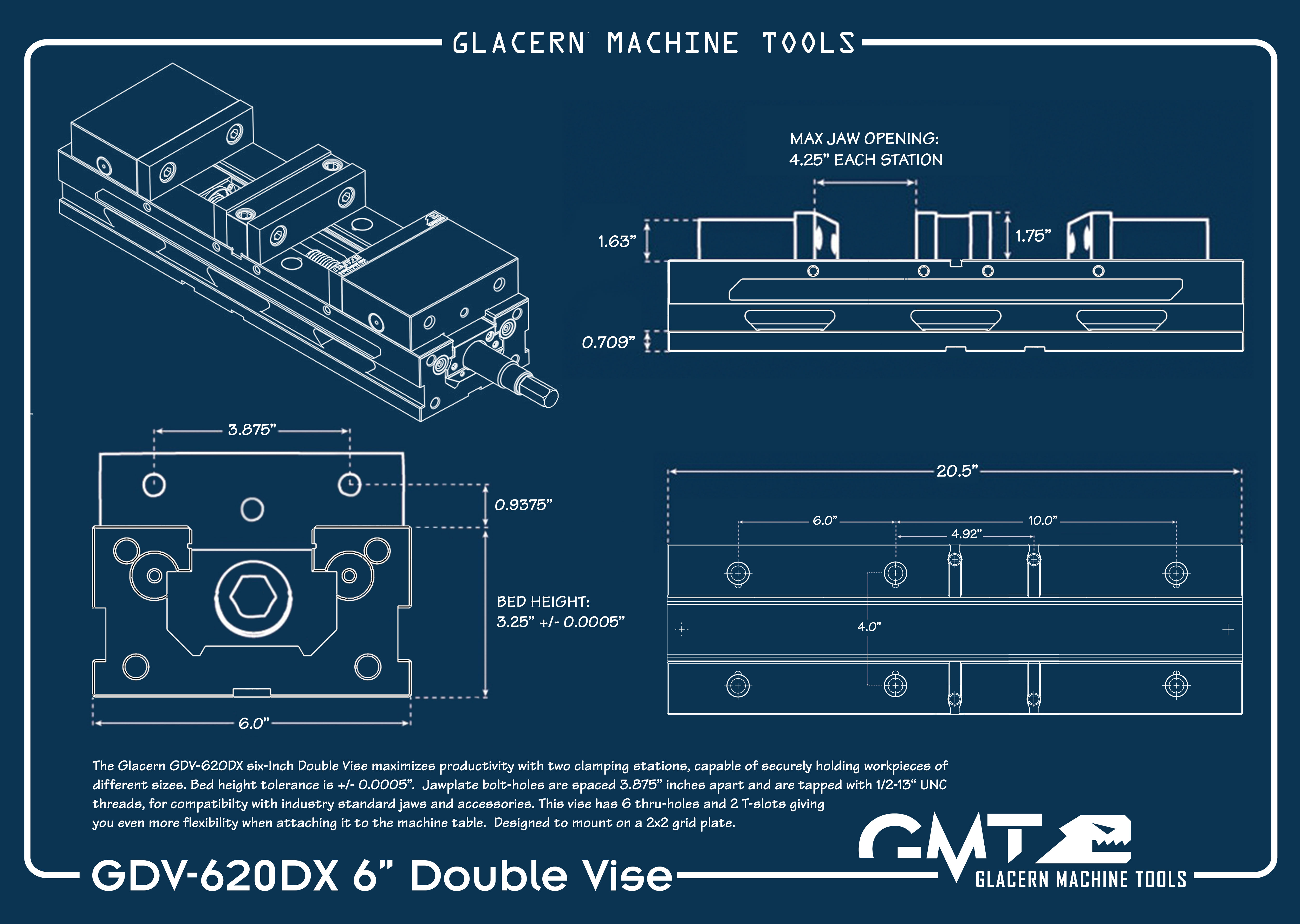

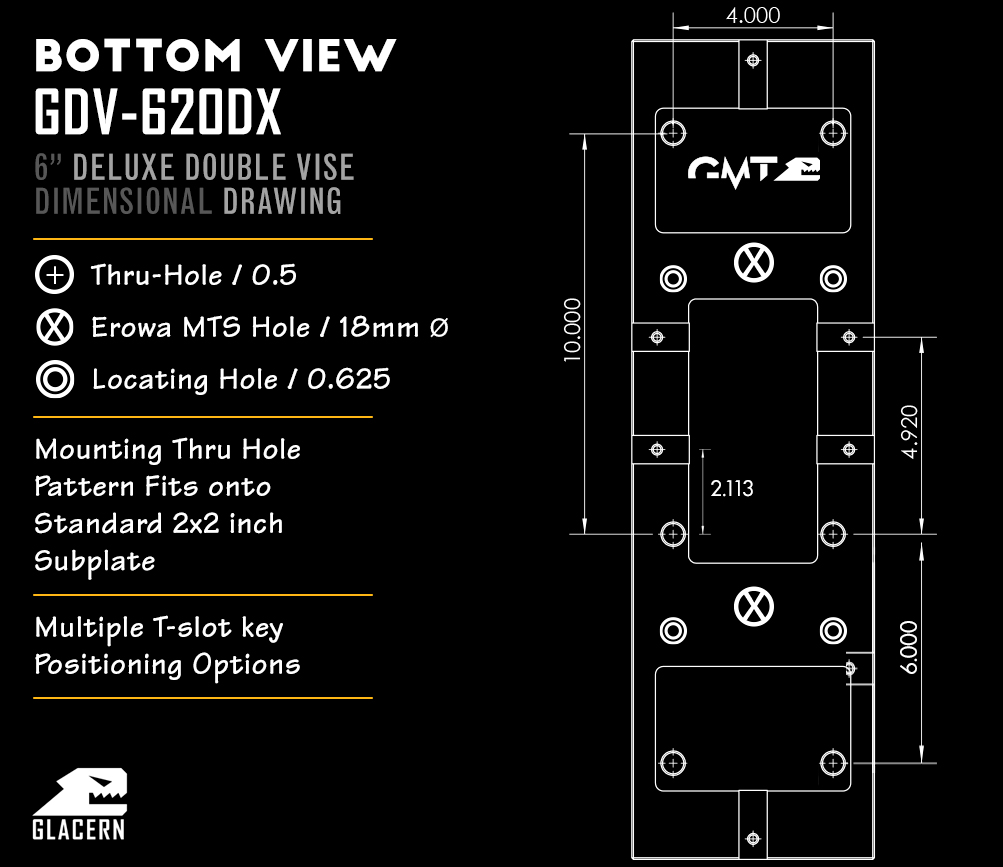

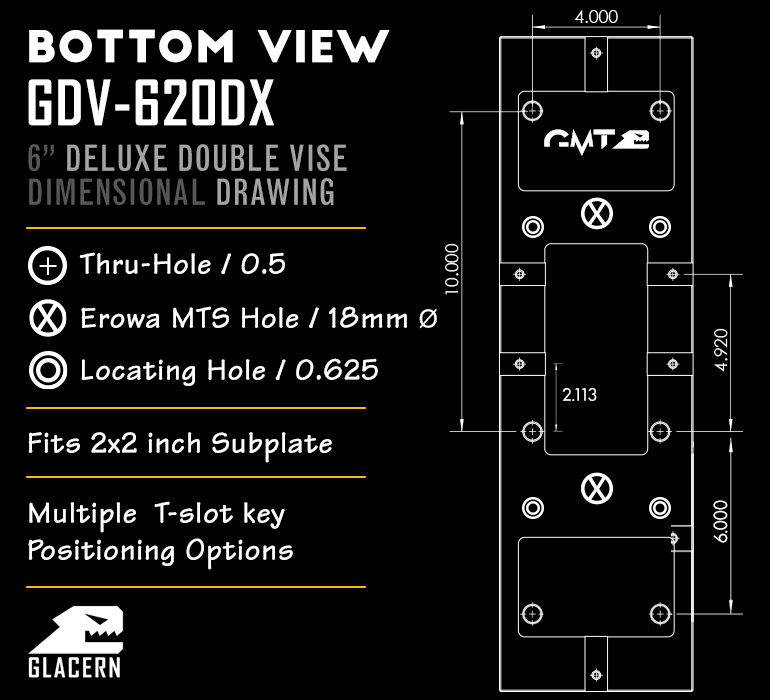

GDV-620 6 Inch Double Vise Blueprint

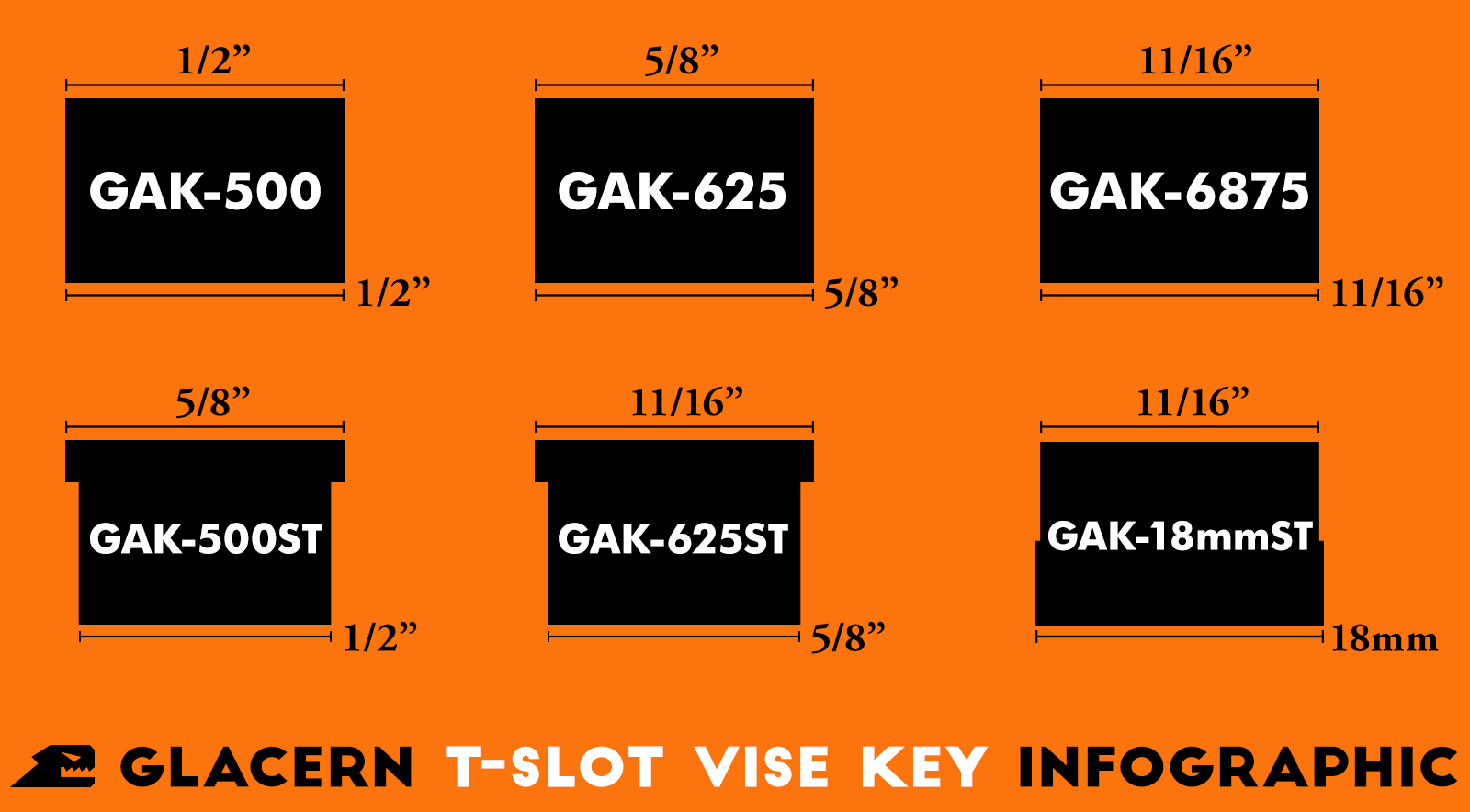

Glacern T-Slot Alignment Key Size Chart
