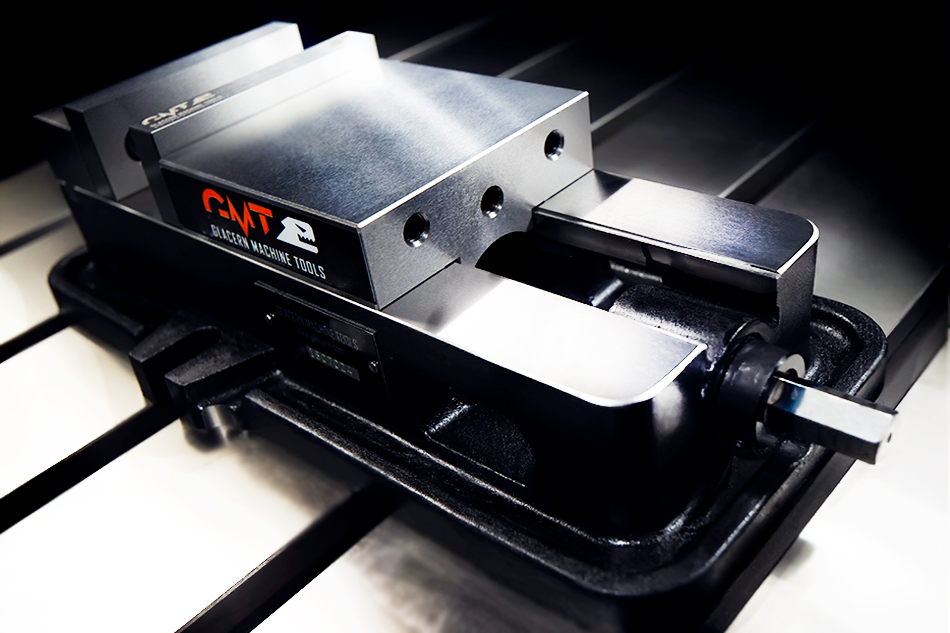

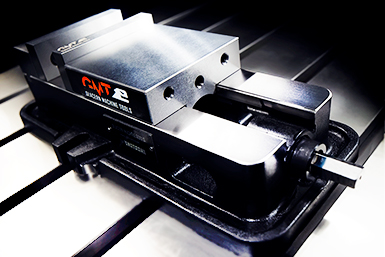

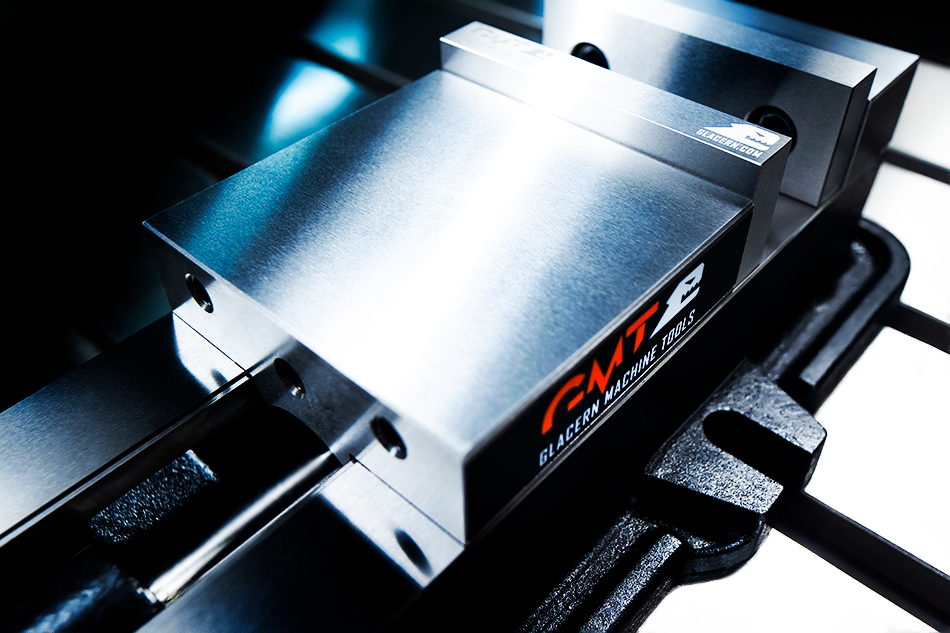

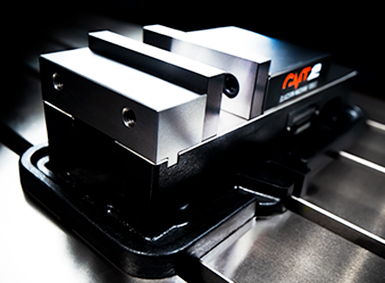

GSV-440 4" Standard CNC Vise

Product Overview
The Glacern GSV-440 standard CNC vise is perfect for smaller machines and workpieces. Not only can it be used for smaller milling operations, when lined up they are a cost-effective alternative to securing longer workpieces. Pair it with the matching swivel base (SB-440) that adjusts in 1-degree increments up to 180-degrees. Base and sides are painted for increased corrosion resistance. Includes a polished handle and 1/2" T-slot keys.

Perfect for Bridgeport style and benchtop milling machines. Let us know if you're wondering if this vise will fit your specific machine.

Construction
  • 80,000 PSI stress-relieved ductile cast iron
  • Bed and jaw plates hardened to HRC 50
  • Anti jaw-lift with 45-degree wedge & hemisphere
  • Over 10,000 lbs max clamping force
  • Clamping repeatability of +/- 0.0004"

Specifications
  • 2.25" bed height
  • Bed heights matched with multiple cnc vise orders
  • 4.00" capacity between the inner jaw plates
  • 10.00" capacity between the outer jaw plates
  • 35 lbs shipping weight
  • Lifetime limited warranty

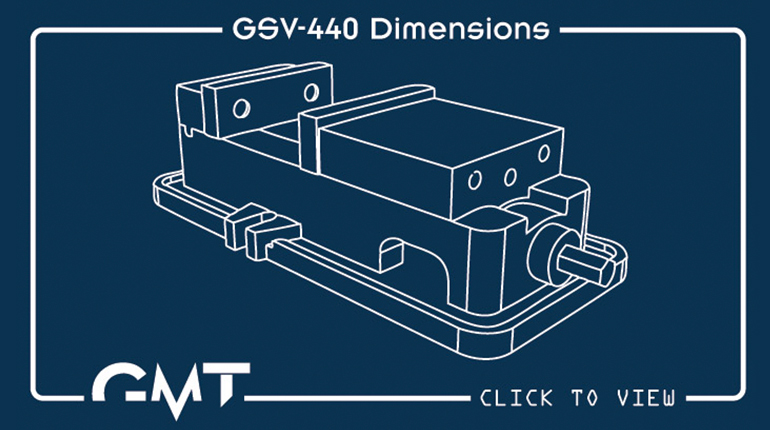

  • Click to view additional specs and dimensions below

Included Accessories
  • Polished Handle (9/16" hex)
  • 4" Hard Jaw Plates
  • 1/2" T-slot alignment keys

Optional Accessories

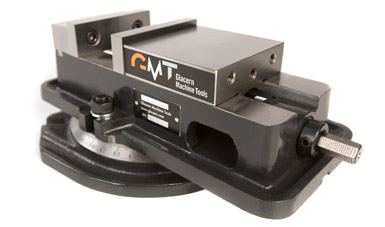

  • Swivel base for GSV-440 standard cnc vise
  • Hardened Vee-jaw for 4" cnc vises
  • Speciality Speed Handles
  • Work Stop (compatible with 4" and 6" vises)
  • 4" Soft Jaws in aluminum (6" extra wide size available)
  • Extra set of 4" hard jaw plates
  • Extra set of 1/2" T-slot alignment keys

Note: All GSV vises come with an alignment notch near the left side bolt hole for zero-degree compatibility with Glacern swivel bases.

Glacern 4 Inch CNC Vise
4 Inch Milling Machine Vise
Glacern GSV-440 4 Inch CNC Vise
GSV-440 4 Inch Standard CNC Vise PHOTO $349.00 IN STOCK

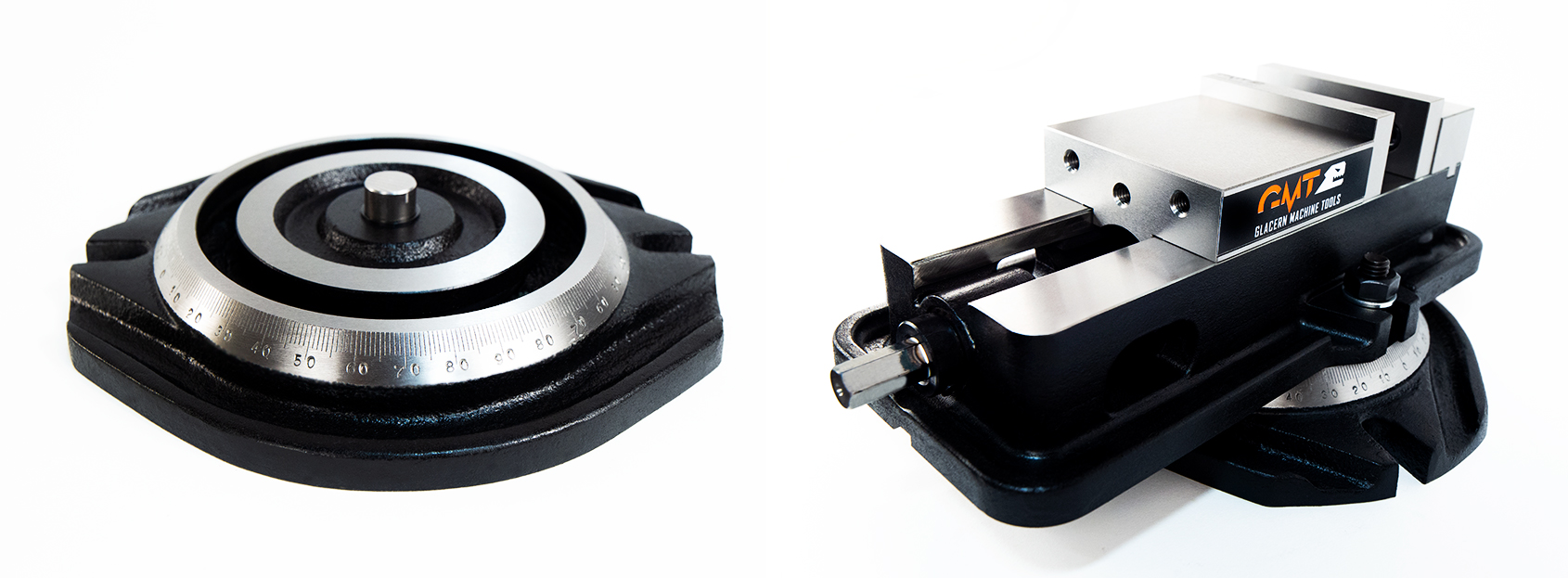

Swivel Base for GSV Vise
SB-440 Swivel Base for GSV-440 PHOTO $119.99 IN STOCK


Specialty Vise Jaws
GVJ-400 Hardened Vee Jaw for 4 Inch Vises PHOTO $99.00 IN STOCK

GHJ-400-P Extra 4-inch Plain Hard Jaws (Pair) PHOTO $59.99 IN STOCK

GSJ-4AL Soft Jaws - 4 Inch Aluminum PHOTO $49.00 IN STOCK

GSJ-460AL Extra Wide 6" AL Soft Jaw for 4" Vises PHOTO $99.00 IN STOCK


Optional Vise Accessories

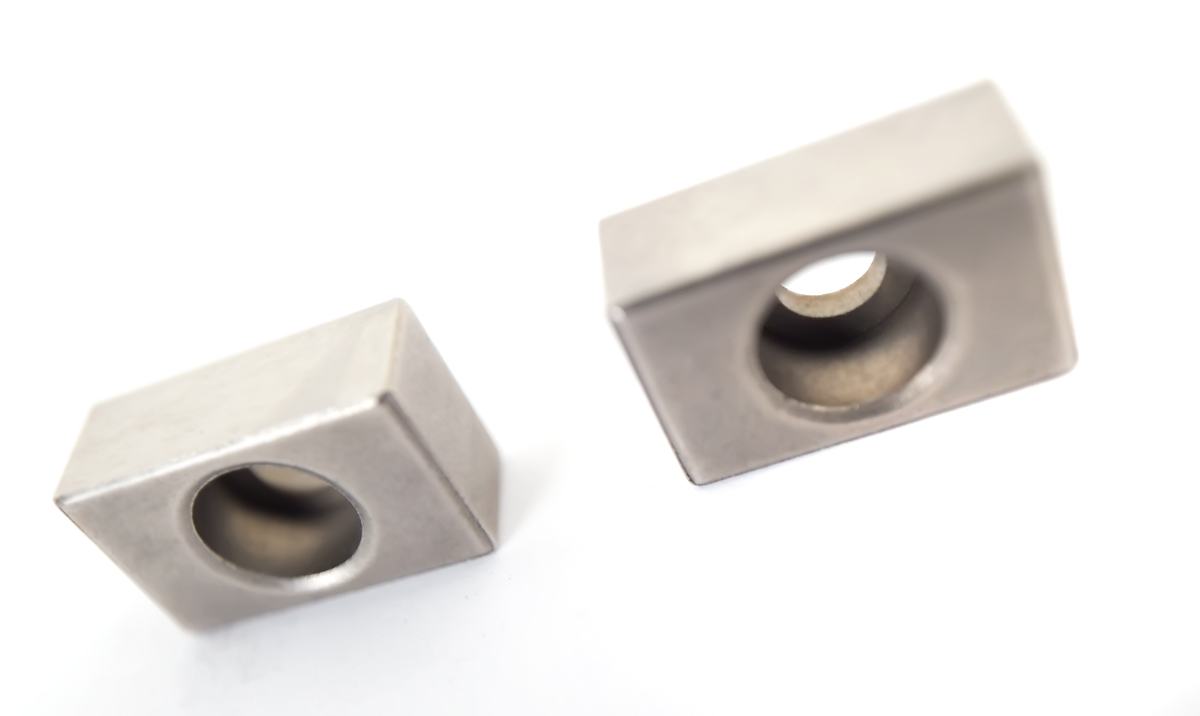

GAK-500 1/2 Inch T-slot Alignment Keys PHOTO $49.99 IN STOCK

GV4-HANDLE Extra Handle for 4-inch Vise PHOTO $59.99 IN STOCK

GV4-HANDLE-CRANK Crank Handle for 4-inch Vise PHOTO $30.00 IN STOCK

GV4-HANDLE-SPEED Speed Handle for 4-inch Vise PHOTO $70.00 IN STOCK

GV6-STOP Work Stop for 4 and 6 Inch Vise PHOTO $99.99 IN STOCK


Technical Specifications & Dimensions
Material: 80,000 PSI Ductile Iron Bed Height: 2.25" +/- 0.0005"
Bed Hardness: HRC 50 Fixed Jaw to Bed: Perpendicular to 0.0005"
Jaw Plate Threads: 3/8"-16 UNC, 2.500" Spacing Fixed Jaw to Keyway: Parallel to 0.0005"
Shipping Weight: 35 lbs Clamping Repeatability: +/- 0.0004"

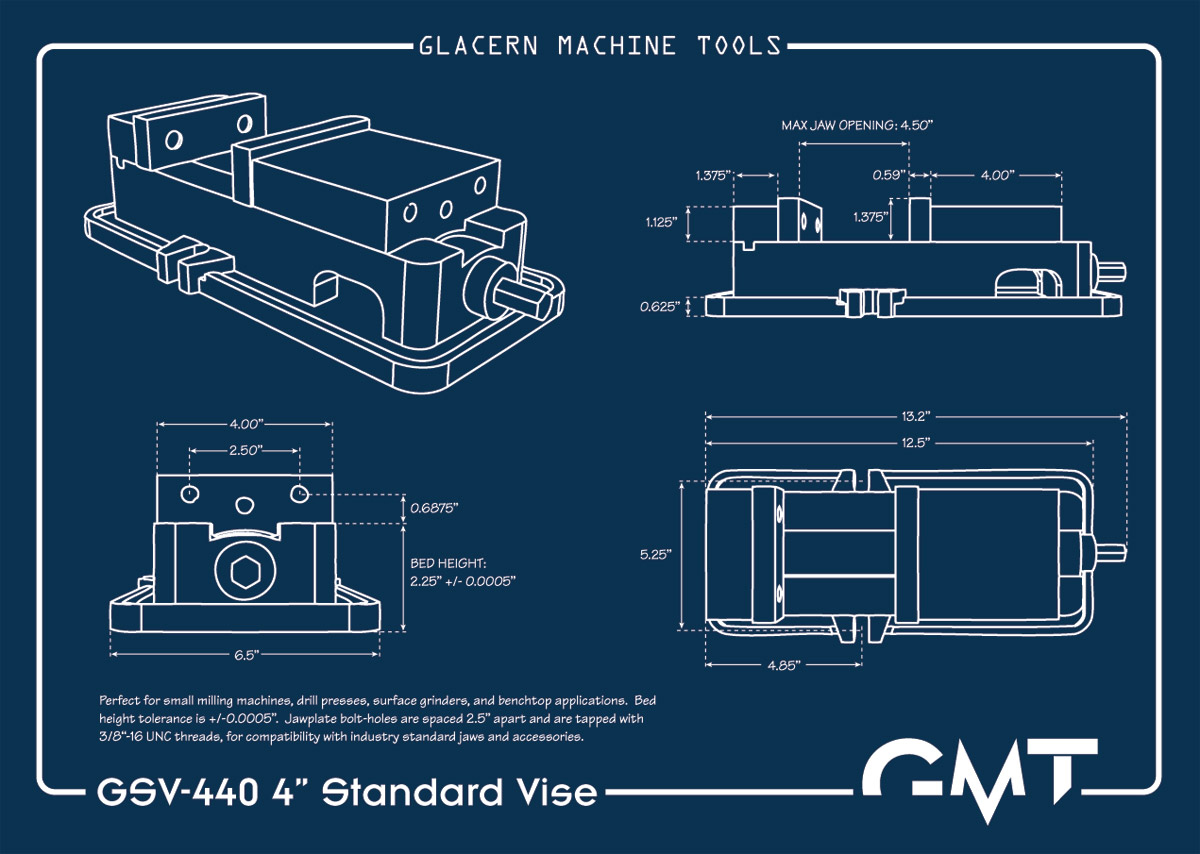

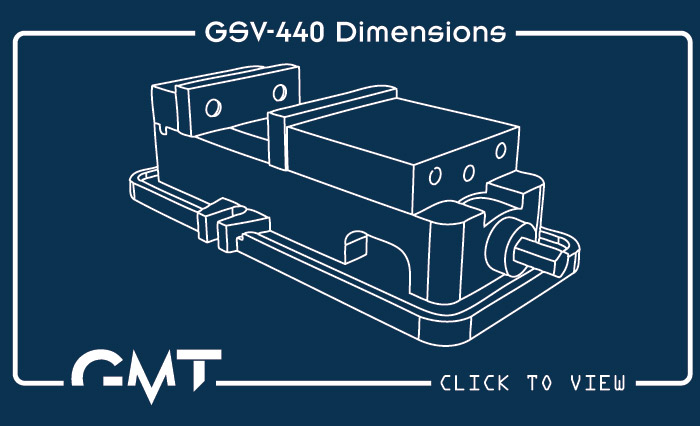

GSV-440 4 Inch Precision Vise Blueprint

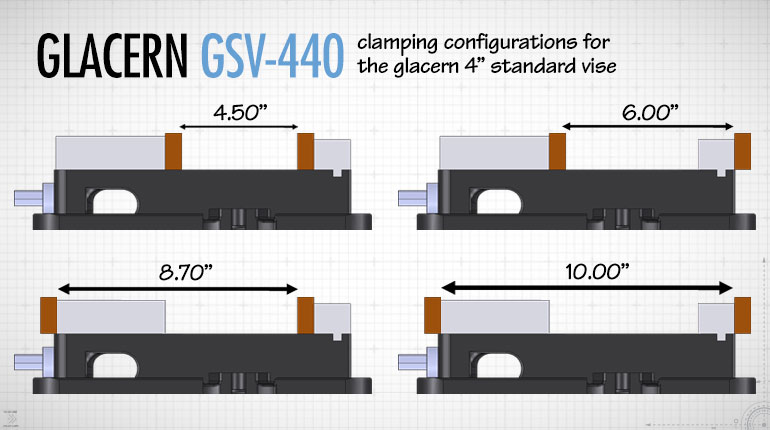

GSV-440 Clamping Configurations

Glacern T-Slot Alignment Key Size Chart
