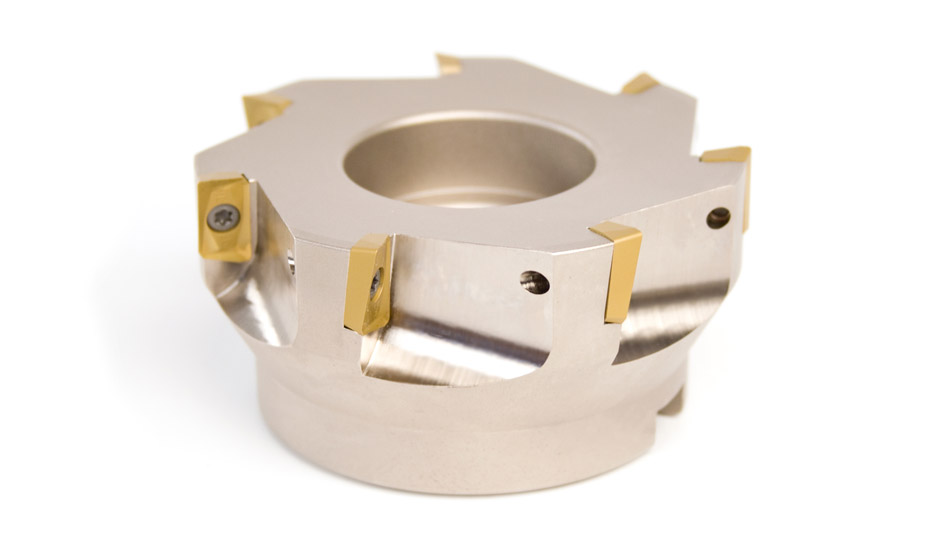

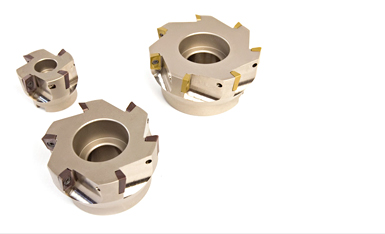

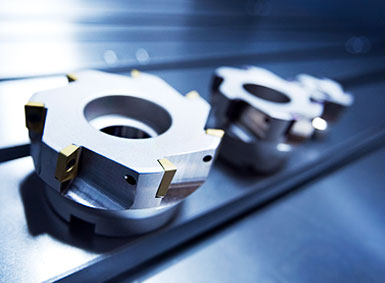

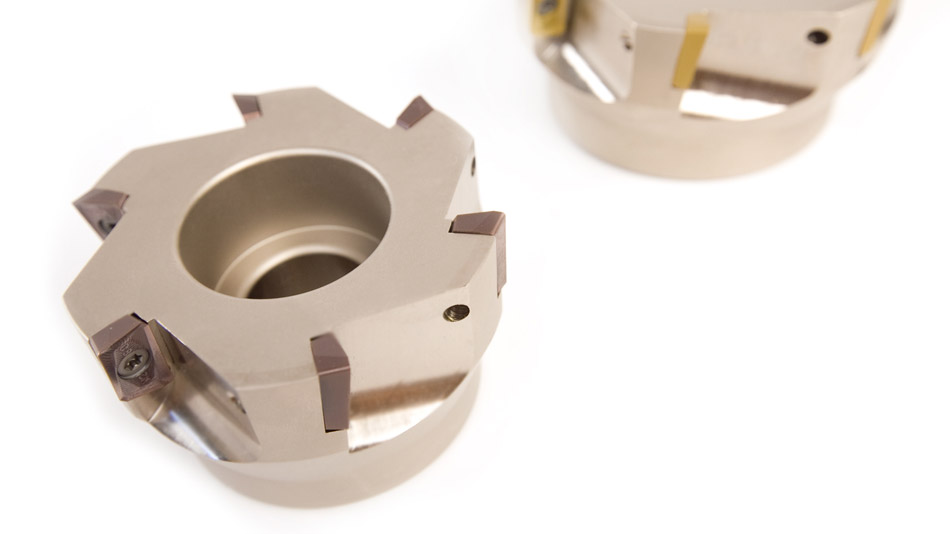

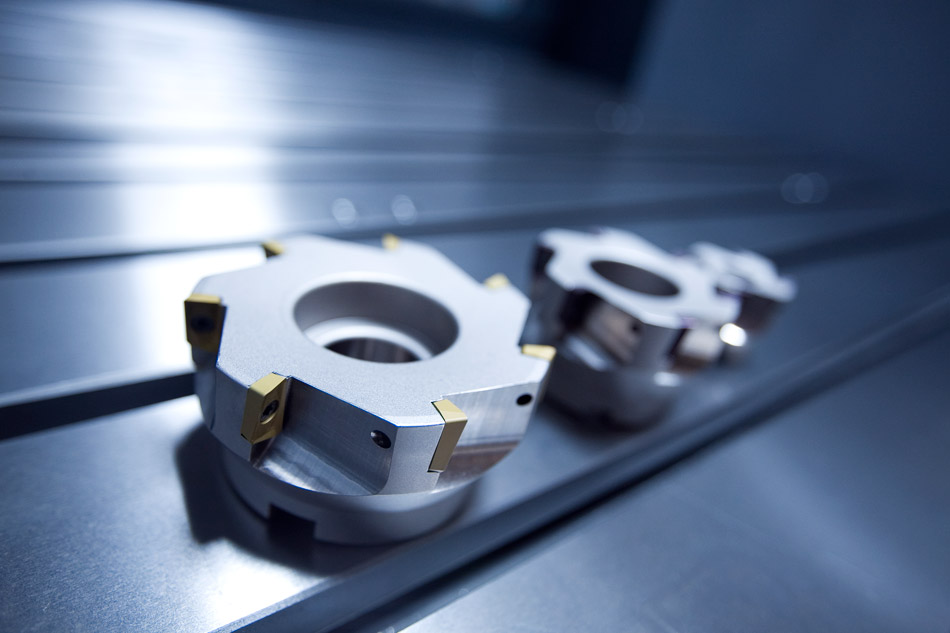

Glacern FM90 Facemills

FM90 Cutter Bodies

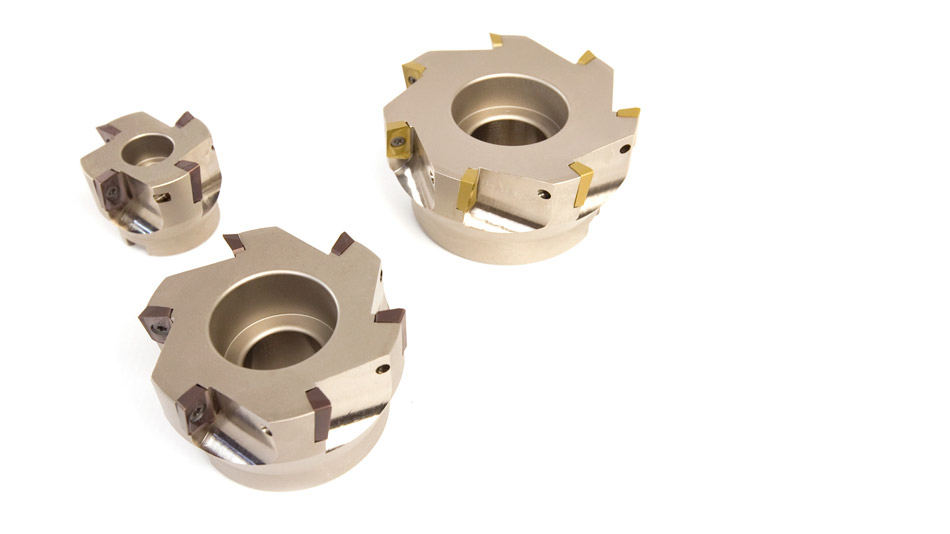

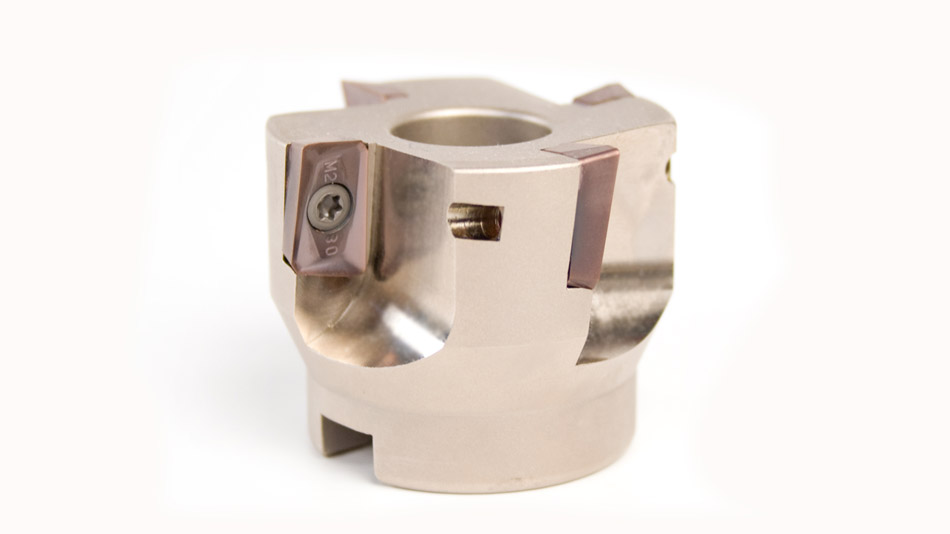

Glacern FM90 nickel-plated facemills are an excellent choice for facing surfaces with shoulders. Positive inserts provide low vibration cutting and conserve spindle horsepower.

The available Mitsubishi APMT carbide inserts cover the majority of workpiece materials used in most shops. Inserts can be used for rough and finish facing, as well as repeated roughing of 90 degree edges and shoulders.

Features
  • 90-degree face milling cutter
  • Excellent surface finish on faces with shoulders, components with thin surfaces
  • Long, even and predictable tool life
  • Low axial forces and vibration
  • No chip thinning effect
  • Diameter range 50-100 mm (2.000-4.000 inch)
  • Electroless Nickel Plated Finish
  • Compatible with APMT style carbide inserts


Specifications
Model Cut Dia Bore Flutes Weight
FM90-200 50mm 1.00" 4 .75 lbs
FM90-250 63mm 1.00" 5 1.1 lbs
FM90-300 80mm 1.00" 6 2.5 lbs
FM90-400 100mm 1.25" 7 4.0 lbs

Facemill Holder Compatibility
Model Holder
FM90-200 FM90-250 FM90-300 CAT40-FM100-175, R8-FM100, BT30-FM100-175B, BT40-FM100-175B, NT40-FM100B
FM90-400 CAT40-FM125-200, R8-FM125, BT40-FM125-175B

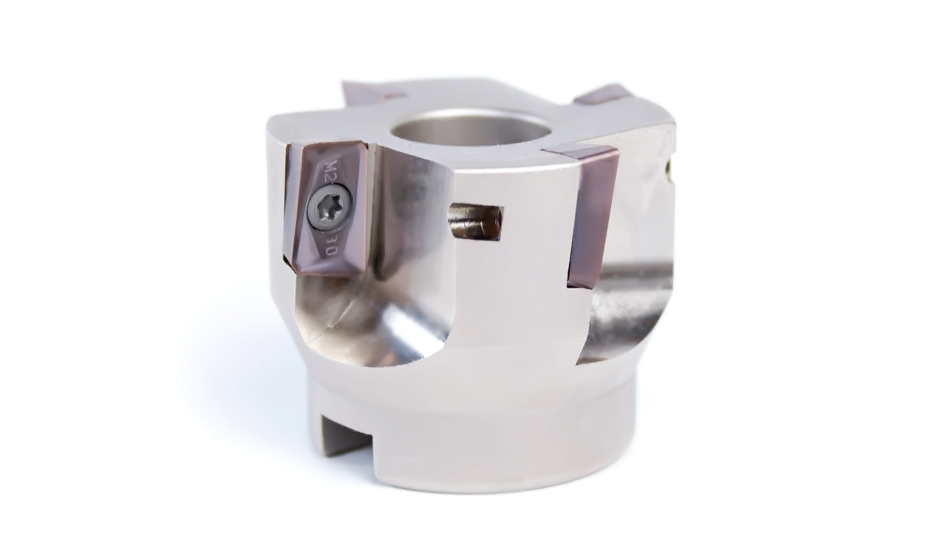

FM90-200 FM90 Facemill - 2in (50mm) PHOTO $99.99 IN STOCK

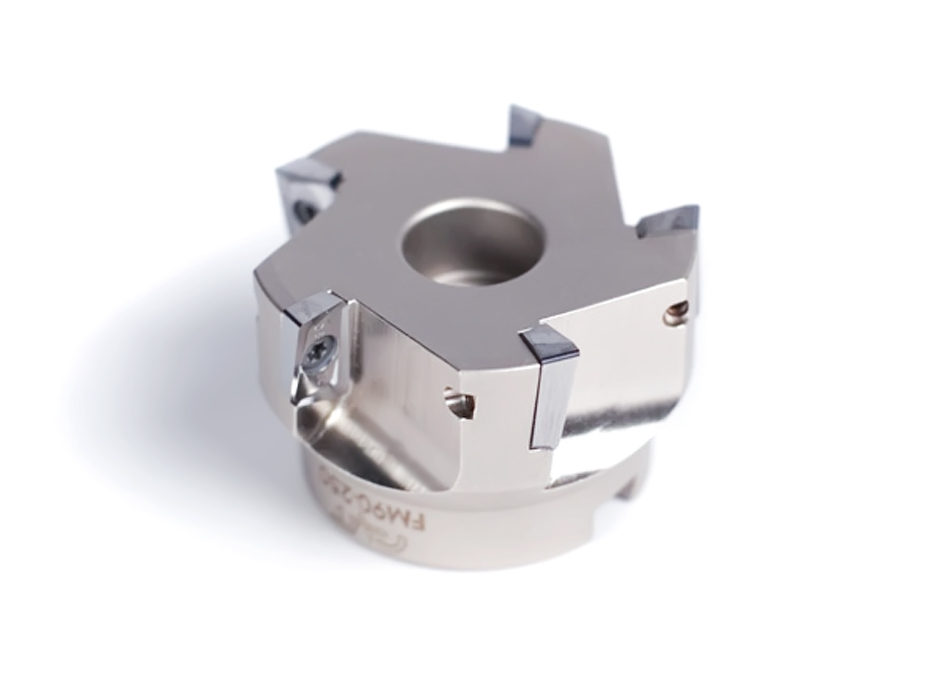

FM90-250 FM90 Facemill - 2.5in (63mm) PHOTO $99.99 IN STOCK

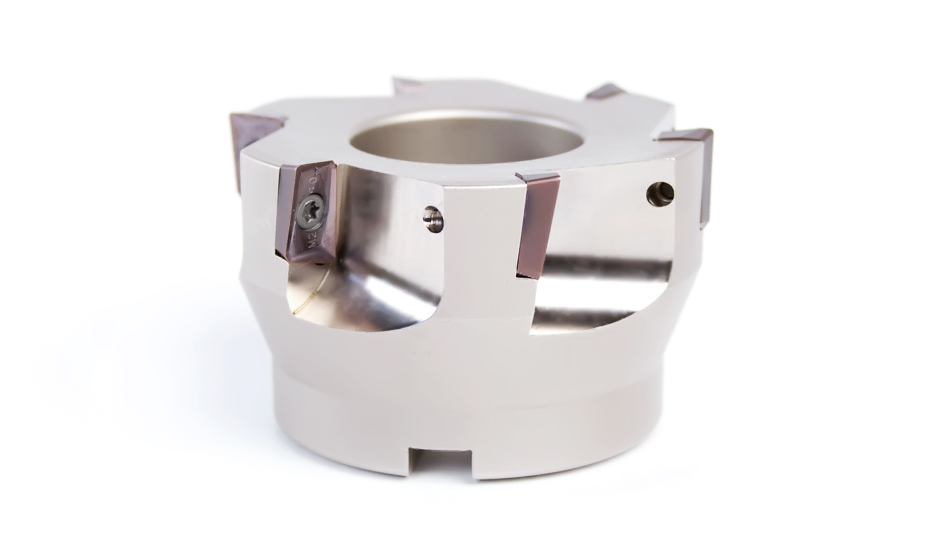

FM90-300 FM90 Facemill - 3in (80mm) PHOTO $99.99 IN STOCK

FM90-400 FM90 Facemill - 4in (100mm) PHOTO $79.99 IN STOCK

CAT40-FM100-175 Facemill Holder - 1.00 Arbor, 1.75in PHOTO $99.99 IN STOCK

CAT40-FM125-200 Facemill Holder - 1.25 Arbor, 2.0in PHOTO $79.99 IN STOCK

R8-FM100 Facemill Holder - 1.00 Arbor PHOTO $99.99 IN STOCK

R8-FM125 Facemill Holder - 1.25 Arbor PHOTO $109.99 IN STOCK


Note: More facemill holders in CAT40, R8, BT40, BT30, and NT40 shanks available HERE.

Inserts for FM90 Facemills
Mitsubishi APMT 1604 carbide inserts with two cutting edges are available for FM90 facemills and EM90 endmills.

Grade HTi10 - Aluminum specific (all nonferrous metals and plastics). Uncoated, use with coolant.

Grade F7030 - General purpose grade for all materials. CVD TiN coating resists wear and chipping. Coolant is optional.

Grade VP15TF - Excels in ferrous materials. AlTiN (purple) coating oxidizes at higher temperatures for rock hard coating. Top choice for dry machining.

90 Degree Inserts for Steel
APMT1604-F7030 Mitsubishi Inserts - Gen Purpose (10 pk) PHOTO $119.99 IN STOCK

APMT1604-VP15TF Mitsubishi Inserts - Steel (10 pk) PHOTO $119.99 IN STOCK


90 Degree Inserts for Aluminum
APGT1604-HTi10 Mitsubishi Inserts - Aluminum (10 pk) PHOTO $159.99 IN STOCK


90 Degree Inserts for Cast Iron
APMT1604-HTi10 Mitsubishi Inserts - Cast Iron (10 pk) PHOTO $99.99 IN STOCK


Replacement Screws for FM90 facemills
APMT1604-SCREW-F Extra Facemill Screw for APMT1604 PHOTO $5.99 IN STOCK
