GPV-412 Premium CNC Vise

Product Overview
The Glacern GPV-412 premium 4" machine vise features precision flat ground sides, allowing high density mounting as well as side mounting. Several mounting options are available with its four bolt flanges, perimeter flange, and counterbored holes through the bed. All these mounting variations allow for close proximity mounting to maximize bed usage. Includes a polished handle and 5/8" T-slot keys.

Key Features
  • New Upgraded Body Design
  • Machined Thru-Holes (2) for bolting to table
  • Fully threaded leadscrew, improved chip sealing
  • Precision ground sides, flip on side to clamp tall workpieces
  • Fixed Jaw Integrated into Body, maximum rigidity
  • Ground Fixed Jaw back, for attaching outboard jaws

Construction
  • 80,000 PSI stress-relieved ductile cast iron
  • Bed and jaw plates hardened to HRC 50
  • Anti jaw-lift with 45-degree wedge & hemisphere
  • Over 10,000 lbs max clamping force
  • Clamping repeatability of +/- 0.0002"

Specifications
  • 2.500" bed height
  • Bed heights matched with multiple cnc vise orders

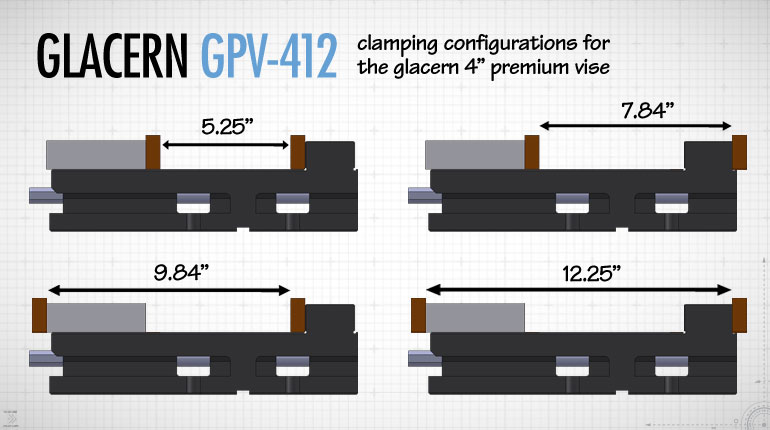

  • 5.25" capacity between the inner jaw plates
  • 12.25" capacity between the outer jaw plates
  • Industry-standard bolt hole pattern (2.500" x 0.6875")
  • 40 lbs shipping weight
  • Lifetime limited warranty

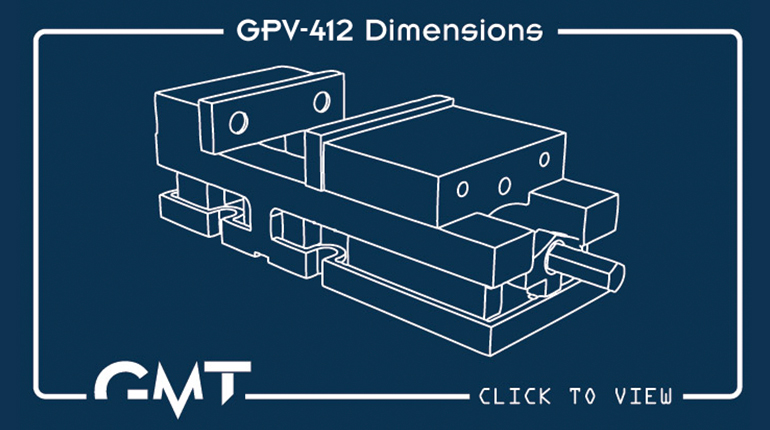

  • Click to view additional specs and dimensions below

Included Accessories
  • Polished Handle (9/16" hex)
  • 4" Hard Jaw Plates
  • 5/8" T-slot alignment keys (1/2" stepped keys also available)
  • Four Toe Clamps
  • Four T-slot mounting bolts & nuts
  • Chip guard


Optional Accessories
  • Specialty Vise Jaws for 4" CNC vises
  • Speciality Speed Handles
  • Work Stop (compatible with 4" and 6" vises)
  • 4" Soft Jaws available in aluminum
  • Extra 4" hard jaw plates
  • Extra T-slot alignment keys
  • Click here to view all Glacern Vise Accessories


GPV-412 4 Inch Premium CNC Vise PHOTO $629.00 IN STOCK


Specialty Vise Jaws
GCJ-400 4-Inch Chomper Hard Jaws PHOTO $169.99 IN STOCK

GVJ-400 4-Inch Hardened Vee Jaw PHOTO $99.00 IN STOCK

GXJ-400 4-Inch Serrated Hard Jaws PHOTO $139.99 IN STOCK

GHJ-400-P 4-inch Original Hard Jaws (Pair) PHOTO $119.99 PRE ORDER Email Us
GSJ-4AL Soft Jaws - 4 Inch Aluminum PHOTO $59.00 IN STOCK

GSJ-460AL Extra Wide 6 AL Soft Jaws for 4 In Vises PHOTO $59.00 IN STOCK


Optional Vise Accessories
GAK-625 5/8 Inch T-Slot Keys PHOTO $49.99 IN STOCK

GAK-500ST 1/2 Table to 5/8 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GV4-HANDLE Extra Handle for 4-inch Vise PHOTO $59.99 IN STOCK

GV4-HANDLE-CRANK Crank Handle for 4-inch Vise PHOTO $29.00 IN STOCK

GV4-HANDLE-SPEED Speed Handle 4 Inch Vise PHOTO $75.00 IN STOCK

GV6-STOP Work Stop for 4 and 6 Inch Vise PHOTO $139.99 IN STOCK

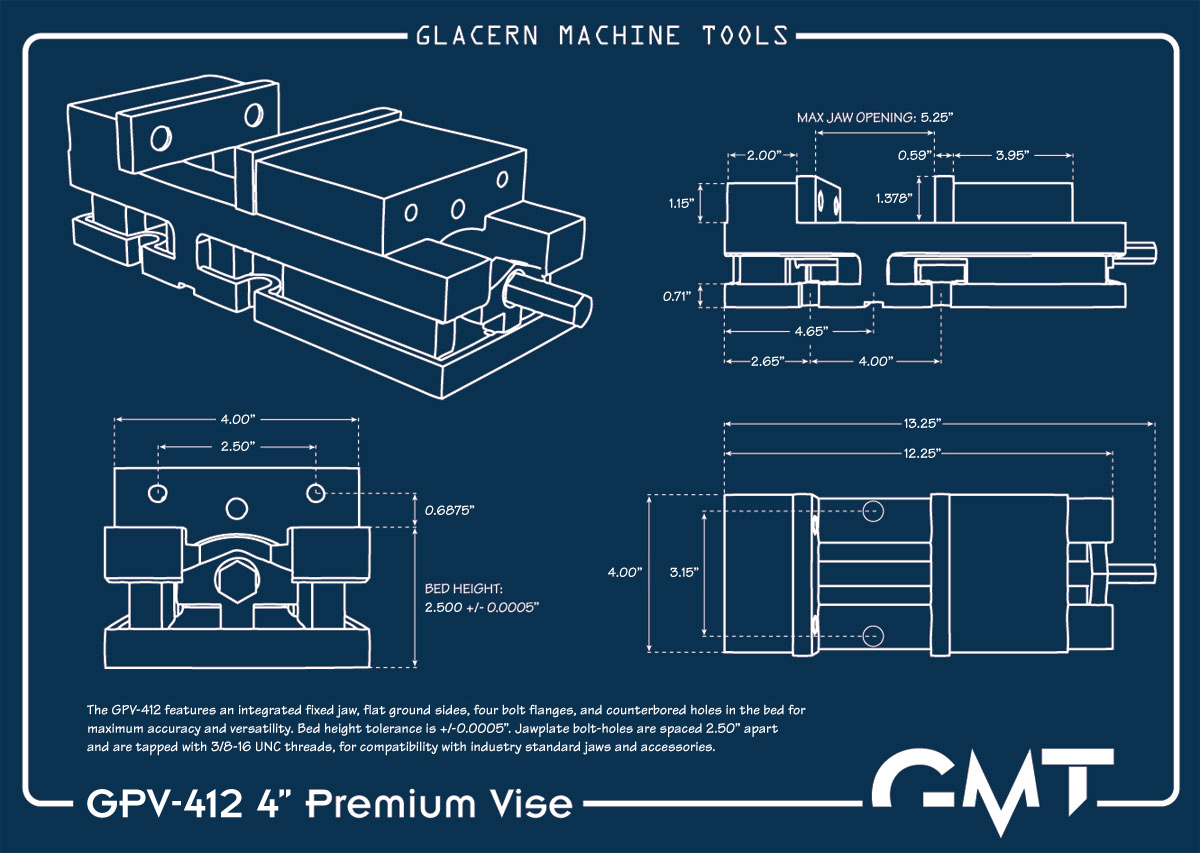

Technical Specifications & Dimensions
Material: 80,000 PSI Ductile Iron Bed Height: 2.500" +/- 0.0005"
Bed Hardness: HRC 55 Fixed Jaw to Bed: Perpendicular to 0.0005"
Jaw Plate Threads: 3/8"-16 UNC, 2.500" Spacing Fixed Jaw to Sides: Perpendicular to 0.0005"
Clamping Force: 10,000 lbs Fixed Jaw to Keyway: Parallel to 0.0005"
Overall Weight: 40 lbs Clamping Repeatability: +/- 0.0002"

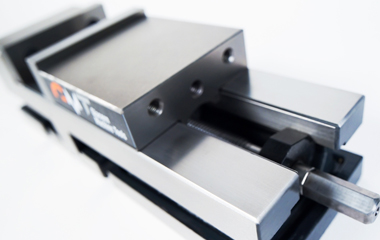

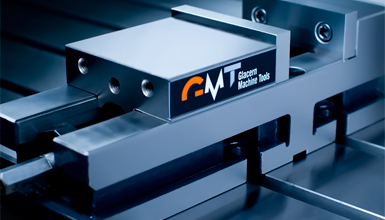

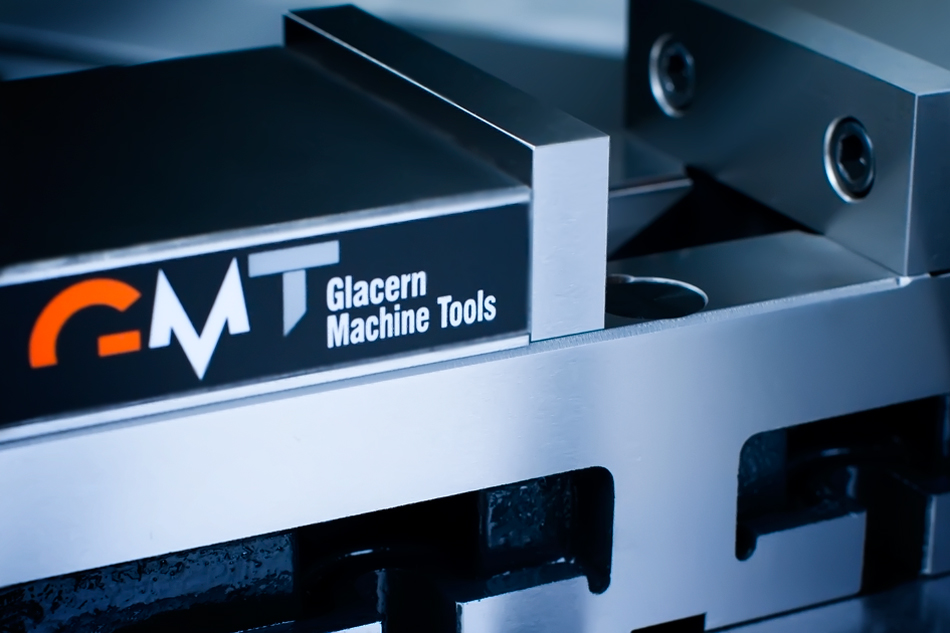

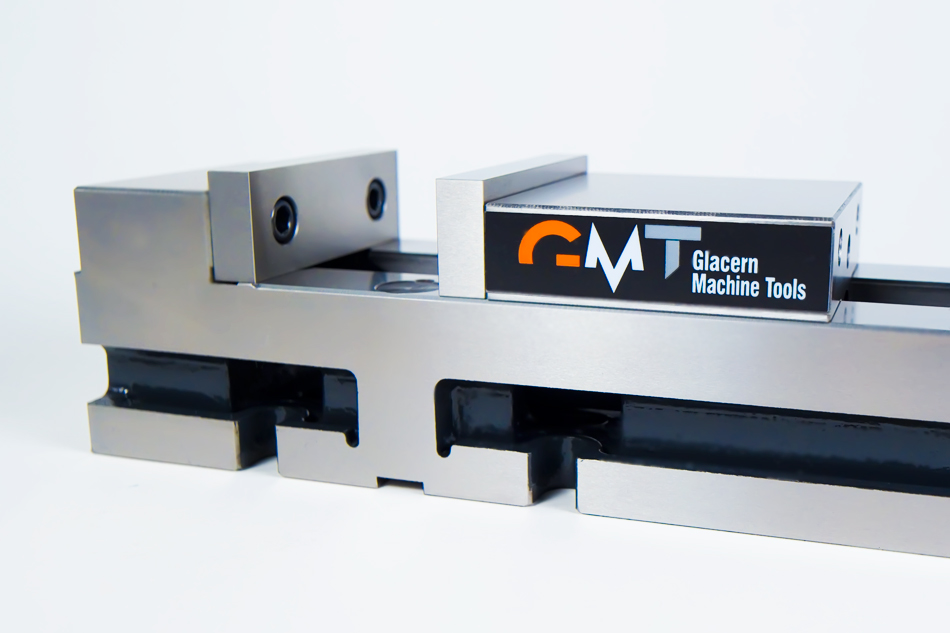

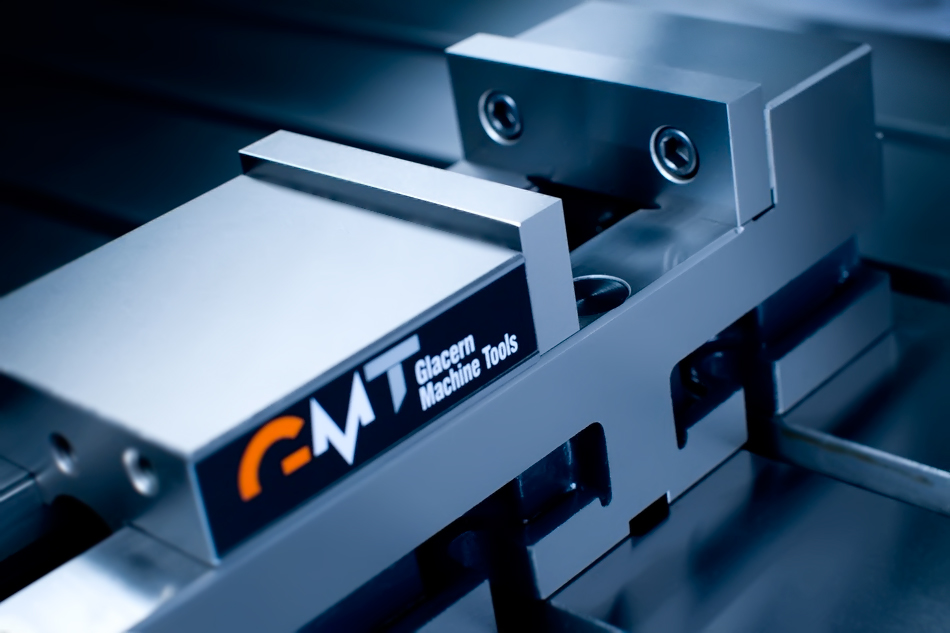

Additional Photos



Glacern T-Slot Alignment Key Size Chart
