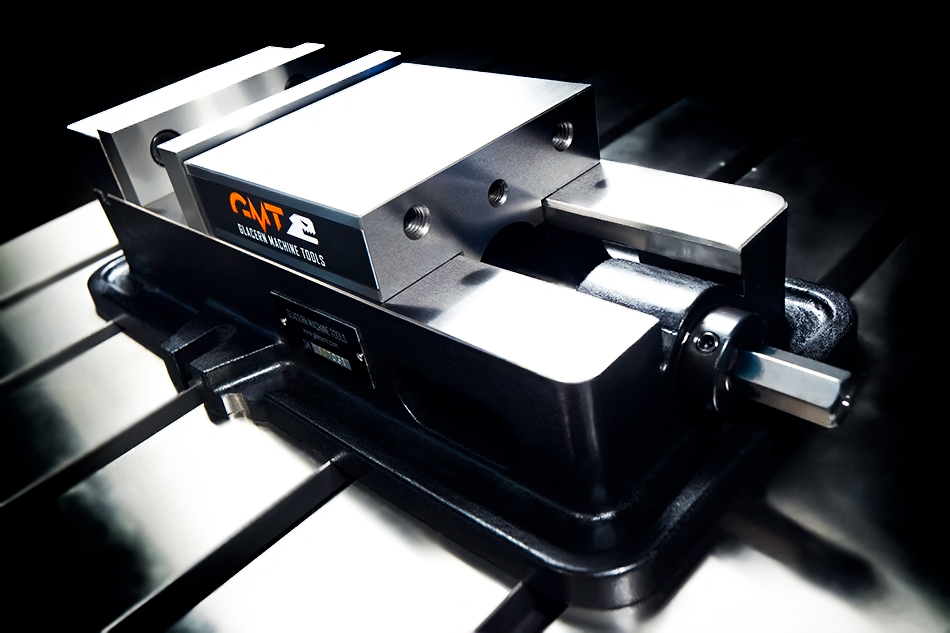

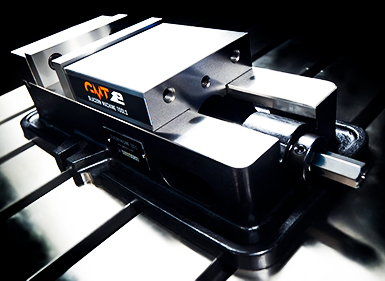

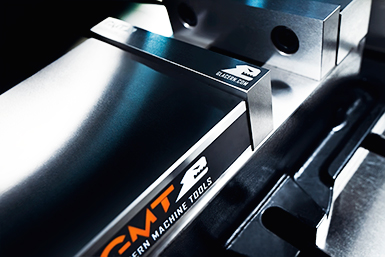

GSV-550 5" Standard CNC Vise

Product Overview

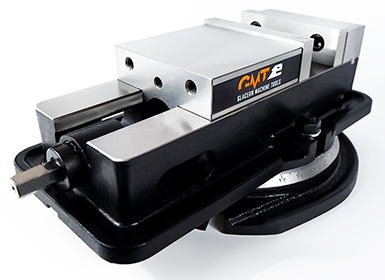

The Glacern GSV-550 standard CNC vise is well suited for all sizes of machines. At 50 lbs, it is easy to lift and great for users who do not need the jaw capacity of our 6 inch cnc vises. Pair it with the matching swivel base (SB-550) that adjusts in 1-degree increments up to 180-degrees. Base and sides are painted for increased corrosion resistance Includes a polished handle and 5/8" T-slot keys.

Perfect for CNC machines or Bridgeport style milling machines. Let us know if you're wondering if this vise will fit your specific machine.

Construction
  • 80,000 PSI stress-relieved ductile cast iron
  • Bed and jaw plates hardened to HRC 50
  • Anti jaw-lift with 45-degree wedge & hemisphere
  • Over 10,000 lbs max clamping force
  • Clamping repeatability of +/- 0.0004"

Specifications
  • 2.50" bed height
  • Bed heights matched with multiple cnc vise orders

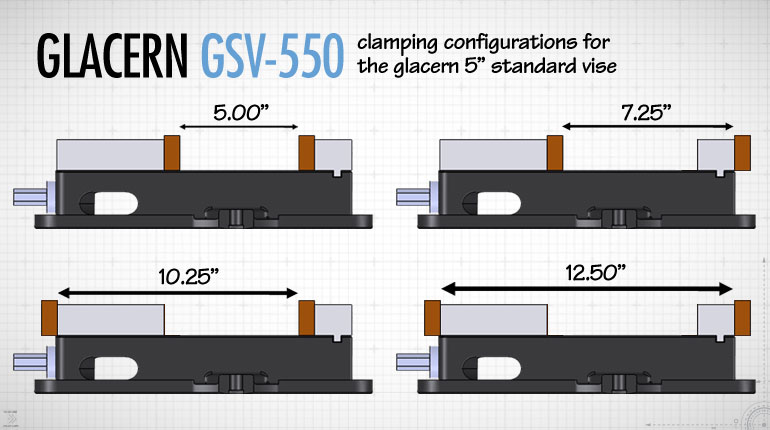

  • 5.00" capacity between the inner jaw plates
  • 12.50" capacity between the outer jaw plates
  • 55 lbs shipping weight
  • Lifetime limited warranty
  • Click to view additional specs and dimensions below

Included Accessories
  • Polished Handle (5/8" hex)
  • 5" Hard Jaw Plates
  • 5/8" T-slot alignment keys (1/2" stepped keys also available)

Optional Accessories
  • Swivel base for GSV-550 standard cnc vise
  • Hardened Vee-jaw for 5" cnc vises
  • 5" Soft Jaws available in aluminum
  • Extra set of 5" hard jaw plates
  • Extra set of 5/8" T-slot alignment keys
  • 1/2" stepped T-slot alignment keys

Note: All GSV vises come with an alignment notch near the left side bolt hole for zero-degree compatibility with Glacern swivel bases.

GSV-550 5 Inch Standard CNC Vise PHOTO $379.00 IN STOCK


Swivel Base for GSV Vise
SB-550 Swivel Base for GSV-550 PHOTO $129.99 IN STOCK


Specialty Vise Jaws
GVJ-500 Hardened Vee Jaw for 5 Inch Vises PHOTO $109.00 IN STOCK

GHJ-500-P Extra 5-inch Plain Hard Jaws (Pair) PHOTO $99.99 IN STOCK

GSJ-5AL Soft Jaws - 5 Inch Aluminum PHOTO $49.00 IN STOCK


Optional Vise Accessories
GAK-625 5/8 Inch T-slot Alignment Keys (Pair) PHOTO $49.99 IN STOCK

GAK-500ST 1/2 to 5/8 Stepped Vise Keys (Pair) PHOTO $49.99 IN STOCK

GV5-HANDLE Extra Handle for 5-inch Vise PHOTO $59.99 Unavailable Email Us
GV5-HANDLE-SPEED Speed Handle for 5-inch Vise PHOTO $70.00 IN STOCK

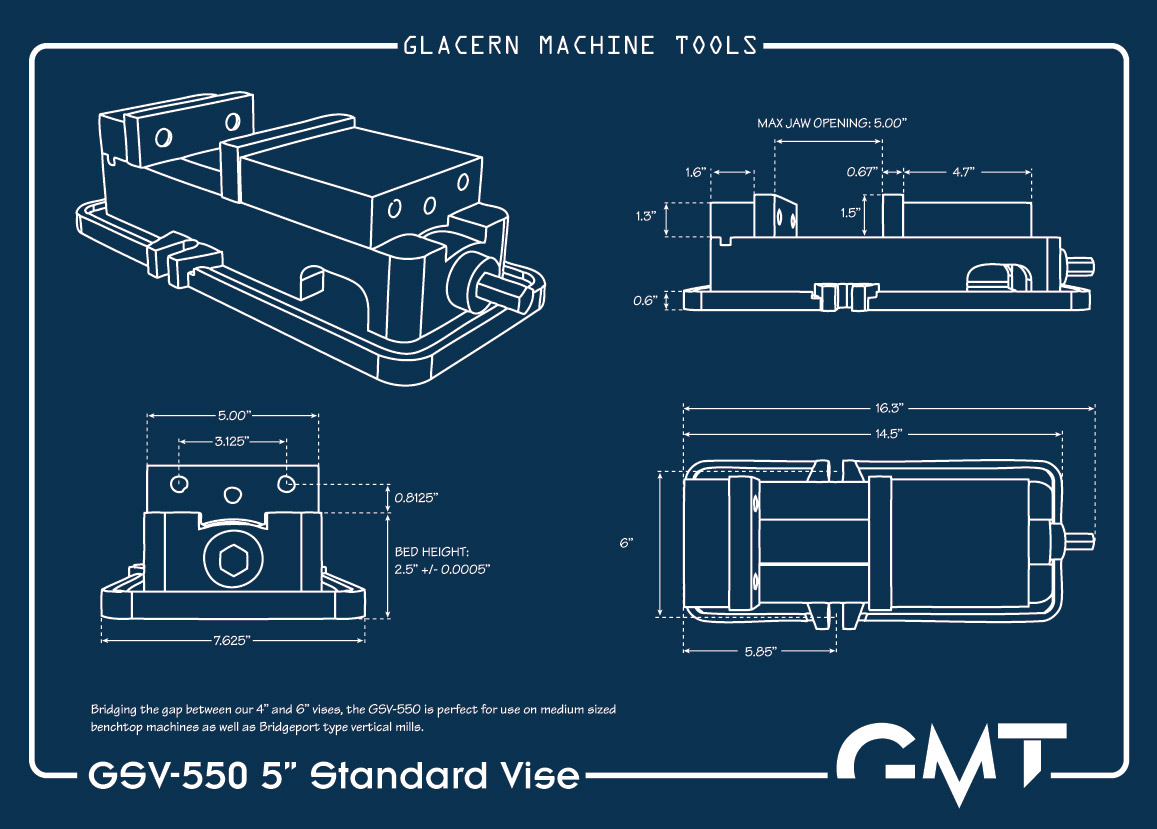

Technical Specifications & Dimensions
Material: 80,000 PSI Ductile Iron Bed Height: 2.500" +/- 0.0005"
Bed Hardness: HRC 50 Fixed Jaw to Bed: Perpendicular to 0.0005"
Jaw Plate Threads: 7/16"-14 UNC, 3.125" Spacing Fixed Jaw to Keyway: Parallel to 0.0005"
Shipping Weight: 55 lbs Clamping Repeatability: +/- 0.0004"

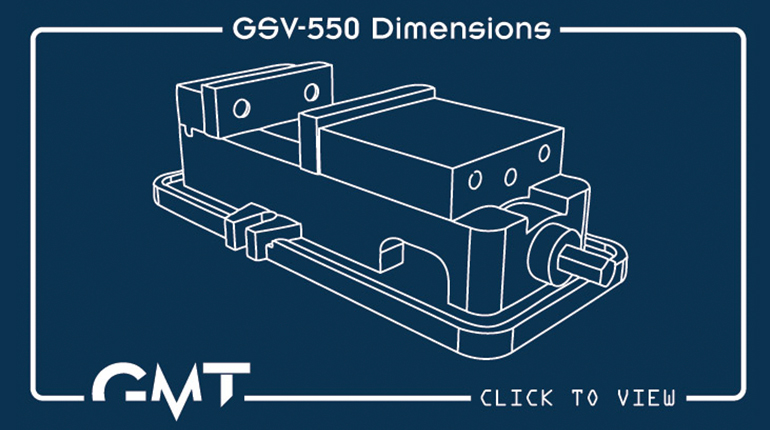

[ Click to View Detailed Dimensions ] [ Right Click to Save ]
