Glacern Vise Alignment Keys

Glacern T-Slot Alignment Keys & Vise Clamping Hardware
Each Glacern vise has precision keyways machined on the bottom of the vise so the user can use T-slot keys to help align the vise on the machine table. Using T-slot keys is optional, not required, and is up to the user's own personal preference. Each vise's original keyway size is different and you can step down the keys to fit your machine table with the accessories below. Many users make further custom modifications to fit their own table setup. These keys are not hardened for exactly that purpose, to make customization easy.

Default Vise Bottom Keyway Slot Sizes
  • GSV-440 = 1/2 Inch
  • GSV-550 = 5/8 Inch
  • GSV-690 = 11/16 Inch
  • GPV-412/R = 5/8 Inch
  • GPV-615/R = 11/16 Inch
  • GDV-416 = 11/16 Inch
  • GDV-620 = 11/16 Inch

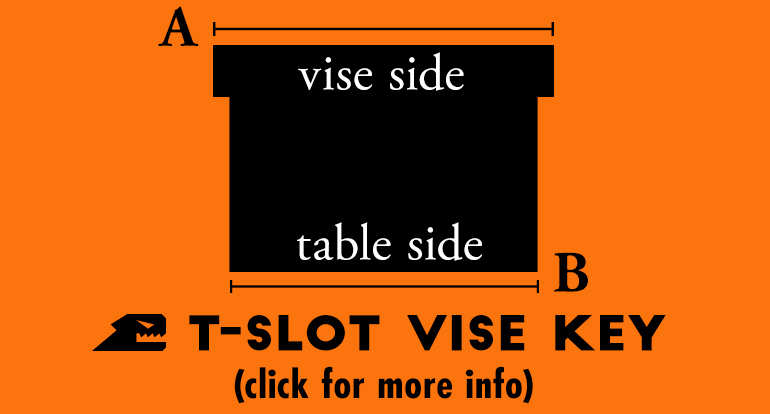

GAK Model A = Vise Side B = Table Side Screw Size
GAK-500 0.5 in 0.5 in 10-24 UNC
GAK-500ST 0.625 in 0.5 in 1/4-20
GAK-625 0.625 in 0.625 in 1/4-20
GAK-625ST 0.6875 in 0.625 in 1/4-20
GAK-6875 0.6875 in 0.6875 in 1/4-20
GAK-14mmST 0.6875 in 14 mm 1/4-20
GAK-18mmST 0.6875 in 18 mm 1/4-20
GAK-22mmST 0.6875 in 22 mm 1/4-20

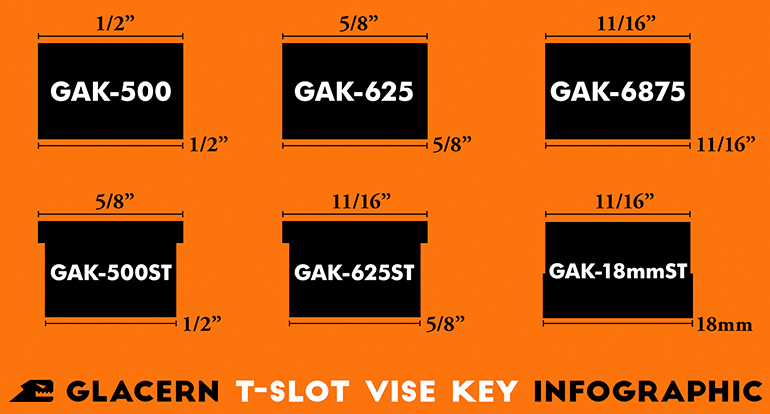

Glacern T-Slot Alignment Key Size Chart Glacern T-Slot Alignment Key Size Chart

Alignment Keys for 6 Inch Vises
GAK-625ST 5/8 Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-6875 11/16 Inch T-Slot Keys PHOTO $49.99 IN STOCK

GAK-14mmST 14mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-18mmST 18mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-22mmST 22mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 Unavailable Email Us

Alignment Keys for 5 Inch Vises
GAK-500ST 1/2 Table to 5/8 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-625 5/8 Inch T-Slot Keys PHOTO $49.99 IN STOCK


Alignment Keys for 4 Inch Vises
GAK-500 1/2 Inch T-Slot Keys PHOTO $49.99 IN STOCK
